Hydraulic Adapters · Plug, Hex Socket, Pipe (NPTF), Stainless

SS-5409-02

SS-5409-02, Hydraulic Adapters, Plug, Hex Socket, Pipe (NPTF), Stainless 1/8-27 3/16

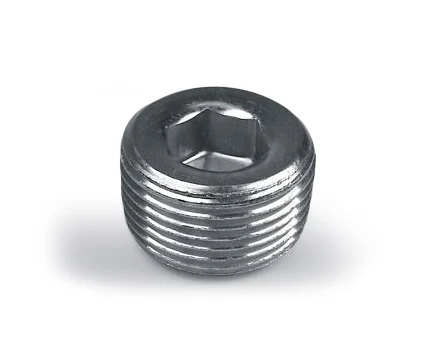

Product image
SS-5409-02 product image
Dimension drawing 1
SS-5409-02 dimension drawing 1

Drawings, photos & CAD downloads

Public previews are available above. A free account is required to download original files.

$6.19 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Thread1/8-27

Values without units follow the drawing.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$6.19
2+$3.69
3+$2.86
4+$2.44
5+$2.19
10+$1.67
25+$1.02
50+$0.84
75+$0.71
100+$0.61

Drawing dimensions

L0.30
Hex3/16
Thread1/8-27

Lettered dimensions refer to the drawing for this part.

Product information

Material: 300 series stainless steel
