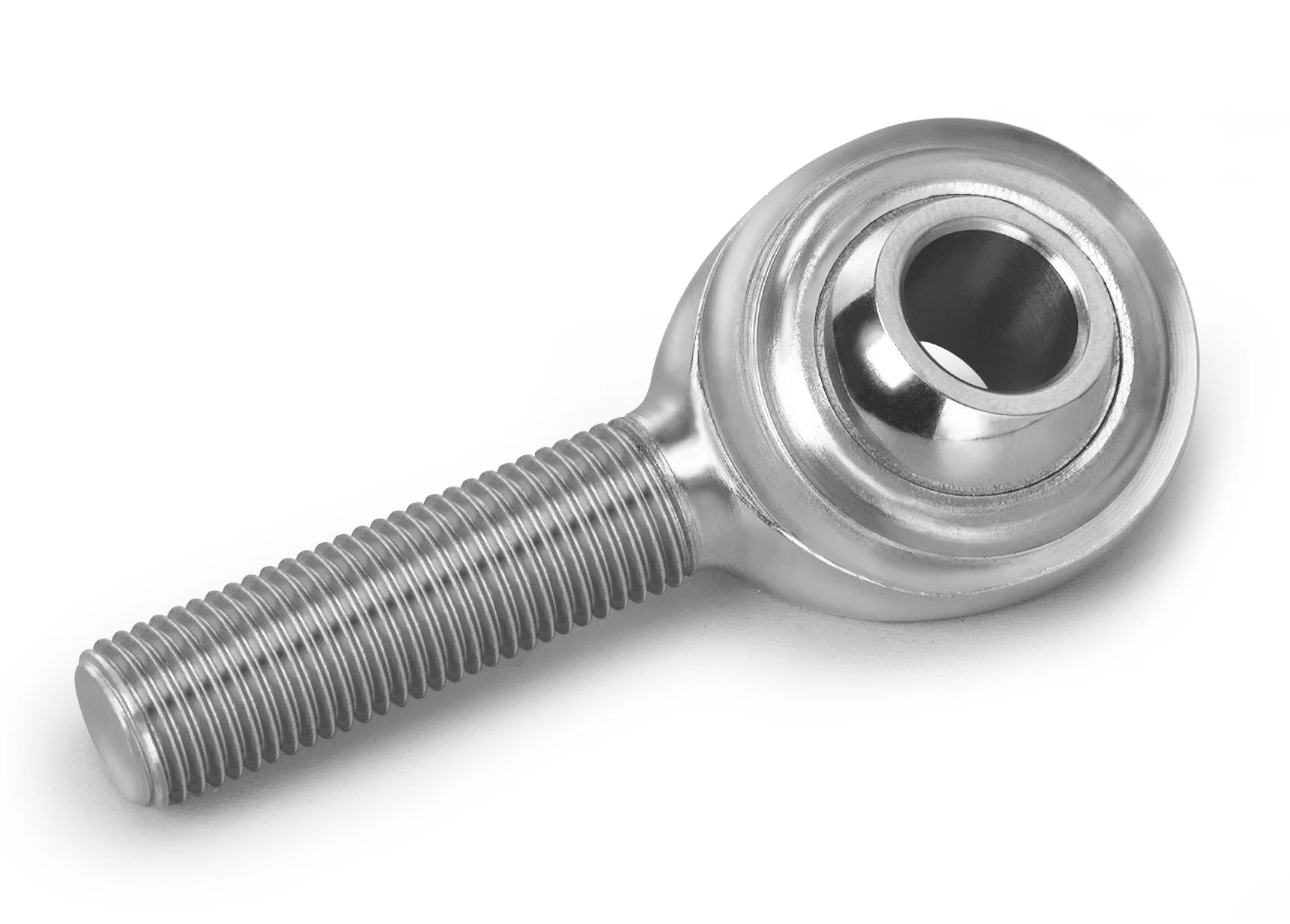

STMX-5, Bearings, Spherical Rod End, Male 5/16-24 RH 17-4 PH Stainless Housing, PTFE Race 0.3135 Bore High Strength
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$33.19 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 5/16-24 RH |
|---|---|
| Bore diameter | 0.3135 |
| Housing construction | 17-4 PH Stainless |
| Race material | PTFE |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $33.19 |
| 2+ | $23.83 |
| 3+ | $23.00 |
| 4+ | $20.68 |
| 5+ | $20.43 |
| 10+ | $15.36 |
| 25+ | $13.53 |
| 50+ | $12.29 |
| 100+ | $10.72 |
| 200+ | $9.17 |
Drawing dimensions
| Threads | 5/16-24 RH |
|---|---|
| A | 0.3135 |
| a° | 50 |
| G | 1.875 |
| H | 1.250 |
| J | 0.875 |
| M | 0.344 |
| N | 0.437 |
| Ultimate Radial Static Load Rating (lbs) | 5,621 |
Lettered dimensions refer to the drawing for this part.
Product information
Housing: 17-4 PH Stainless Steel
Bearing Race: PTFE
Ball: heat treated stainless, hard chrome plated
Application: This series high strength stainless steel makes it an ideal candidate for automotive aftermarket suspension applications such as end links and control arms, depending on the size of the bearing and the specific application.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
