MCPThreads, Weld On · Studs
Stud-14R-3.375
Stud-14R-3.375, Threads, Weld On, Studs 7/8-14 RH for Tubular Bushings

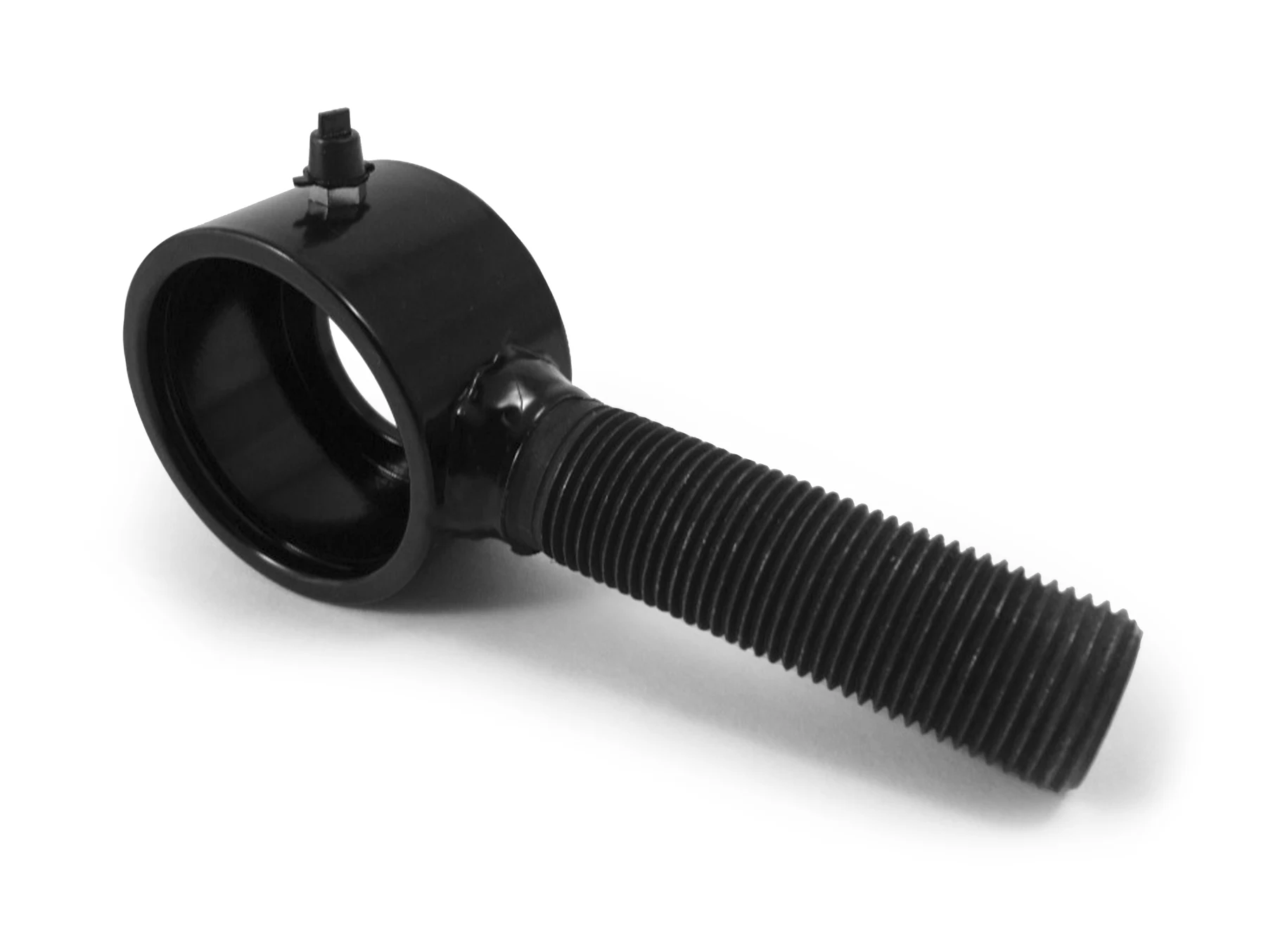

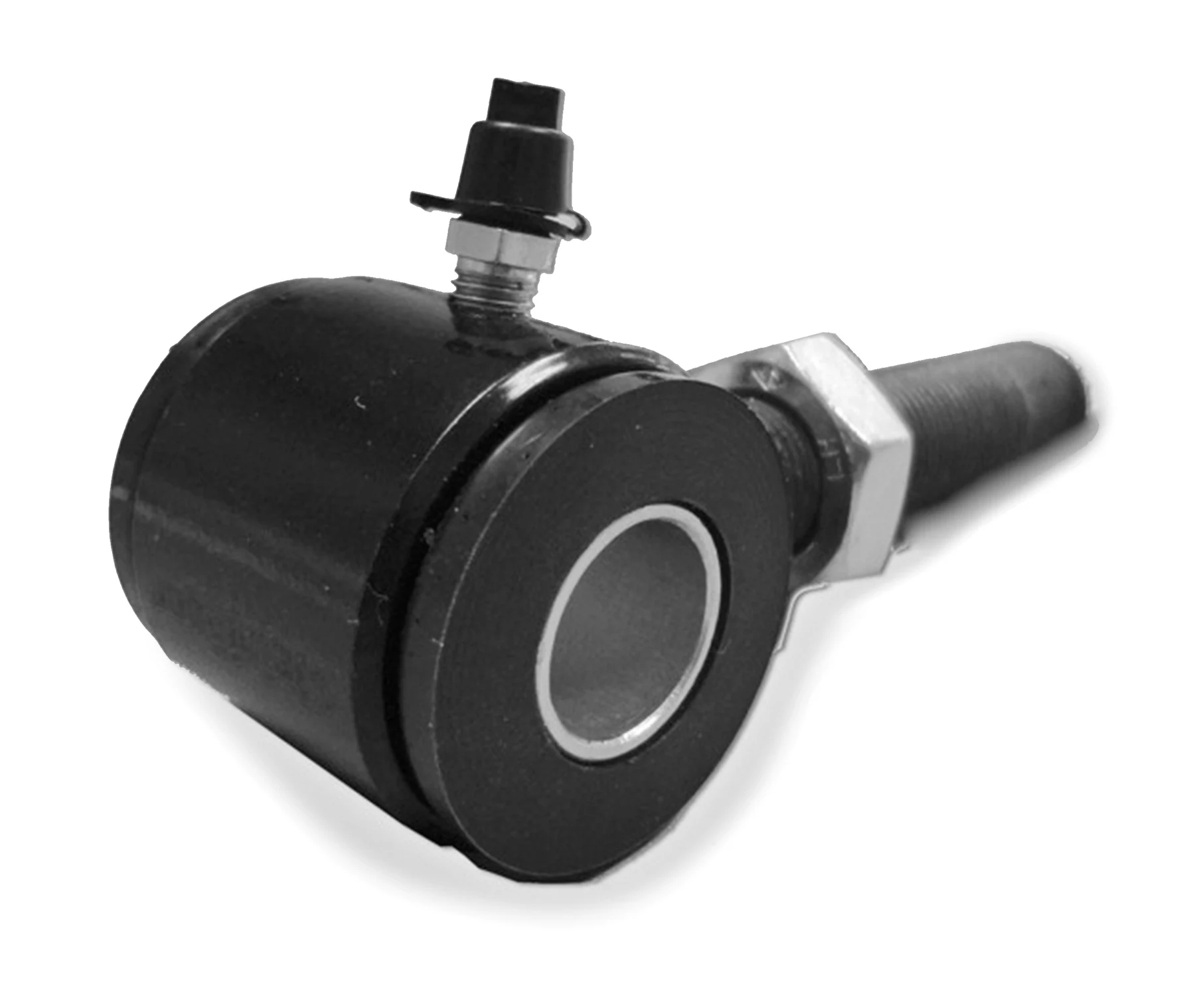

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$18.07 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 7/8-14 RH |
|---|---|
| Style | B |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $18.07 |
| 2+ | $11.59 |
| 3+ | $9.87 |
| 4+ | $9.45 |
| 5+ | $8.10 |
| 10+ | $6.72 |
| 25+ | $4.54 |
| 50+ | $4.00 |
| 75+ | $3.97 |
| 100+ | $3.95 |
| 200+ | $3.56 |
| 300+ | $3.11 |
| 400+ | $3.11 |
| 600+ | $2.66 |

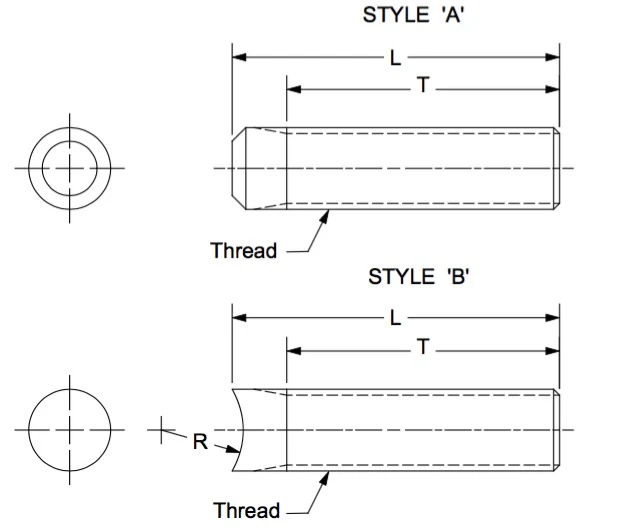

Drawing dimensions
| Threads | 7/8-14 RH |
|---|---|
| Style | B |
| L | 3.375 |
| R | 1.0 |
| T | 2.875 |
Lettered dimensions refer to the drawing for this part.
Product information
Description: Our weld-on studs are useful for building your own tubular bushings.
Material: Heat Treated 4140 Steel, Grade 8 Equivalent
Finish: None. These are not plated
Welding Surface: Straight cut with a 45° chamfered edge
