SU-5CF
SU-5CF, Threaded Adaptors, Bulk 5/16-24 RH Male Threads 5/16-18 RH Female Threads 2.375 Overall Length Thread Size Converter
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$24.27 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Female thread | 5/16-18 RH |
|---|---|
| Male thread | 5/16-24 RH |
| Material | 0.500 Hex Bar |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $24.27 |
| 2+ | $19.89 |
| 3+ | $16.71 |
| 4+ | $14.41 |
| 5+ | $14.16 |
| 10+ | $12.49 |
| 25+ | $8.43 |
| 50+ | $8.33 |
| 100+ | $7.57 |
| 250+ | $5.66 |
| 500+ | $5.65 |
| 1,000+ | $5.56 |

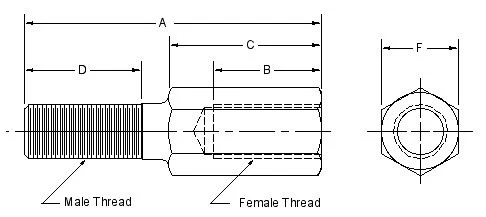

Drawing dimensions
| Material | 0.500 Hex Bar |
|---|---|
| Female Thread | 5/16-18 RH |
| Male Thread | 5/16-24 RH |
| A | 2.375 |
| B | 0.938 |
| C | 1.000 |
| D | 1.125 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: Our adaptors are used to connect two different thread types. Great for converting fine to course threads, converting metric to inch threads, converting inch threads to metric threads.
Construction: low carbon steel, plated zinc yellow.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
