MCPRod Ends, Isolated · Female
TBF-12L-08-1.50-ZC
TBF-12L-08-1.50-ZC, Rod Ends, Isolated, Female 3/4-16 LH 0.510 Bore 2.500 Width 2.688 Length Polyurethane Bushing
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$49.52 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 3/4-16 LH |
|---|---|
| Length | 2.688 |
| Bore diameter | 0.51 |
| Width | 2.5 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $49.52 |
| 2+ | $43.05 |
| 3+ | $42.22 |
| 4+ | $32.26 |
| 5+ | $32.01 |
| 10+ | $28.34 |
| 25+ | $25.65 |
| 50+ | $22.38 |
| 100+ | $19.15 |
| 250+ | $18.78 |

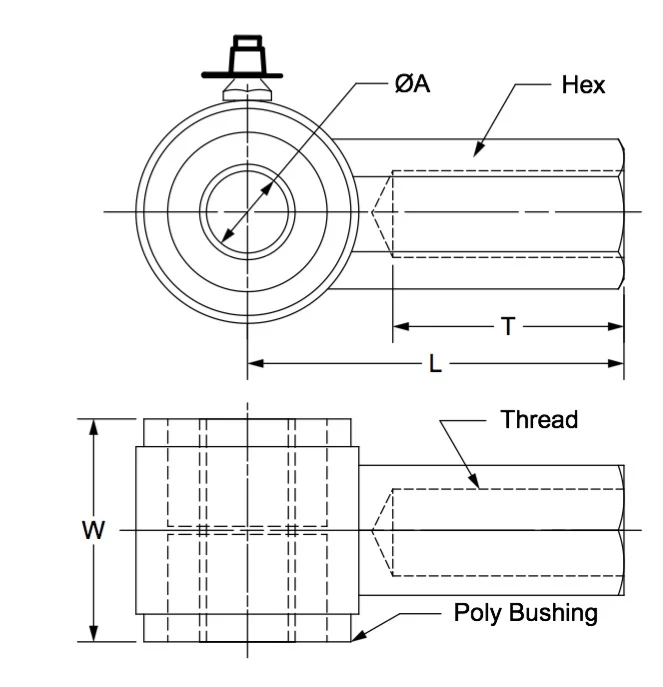

Drawing dimensions
| Threads | 3/4-16 LH |
|---|---|
| Hex | 1.0 |
| A | 0.510 |
| L | 2.688 |
| T | 1.750 |
| W | 2.500 |
Lettered dimensions refer to the drawing for this part.
Product information
Tubular Housing & Tubular Insert: Low Carbon Steel, zinc plated
Polyurethane Bushings: Two Black polyurethane bushing halves per kit.
Grease Zerk: the TBF rod end comes with the grease zerk and grease zerk cap as well.
Video: https://www.youtube.com/watch?v=sxzO_ZCOEl4
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
