MCPRod Ends, Isolated · Male
TBM-10R-08-2.00-B
TBM-10R-08-2.00-B, Rod Ends, Isolated, Male 5/8-18 RH 0.500 Bore 2.00 Width 4.000 Length

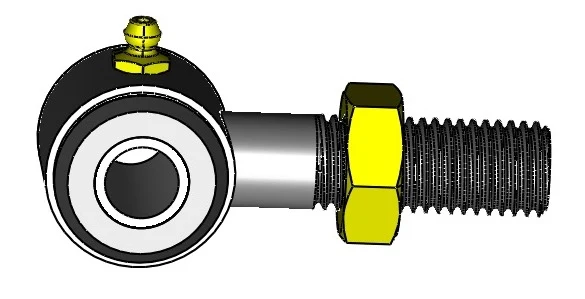

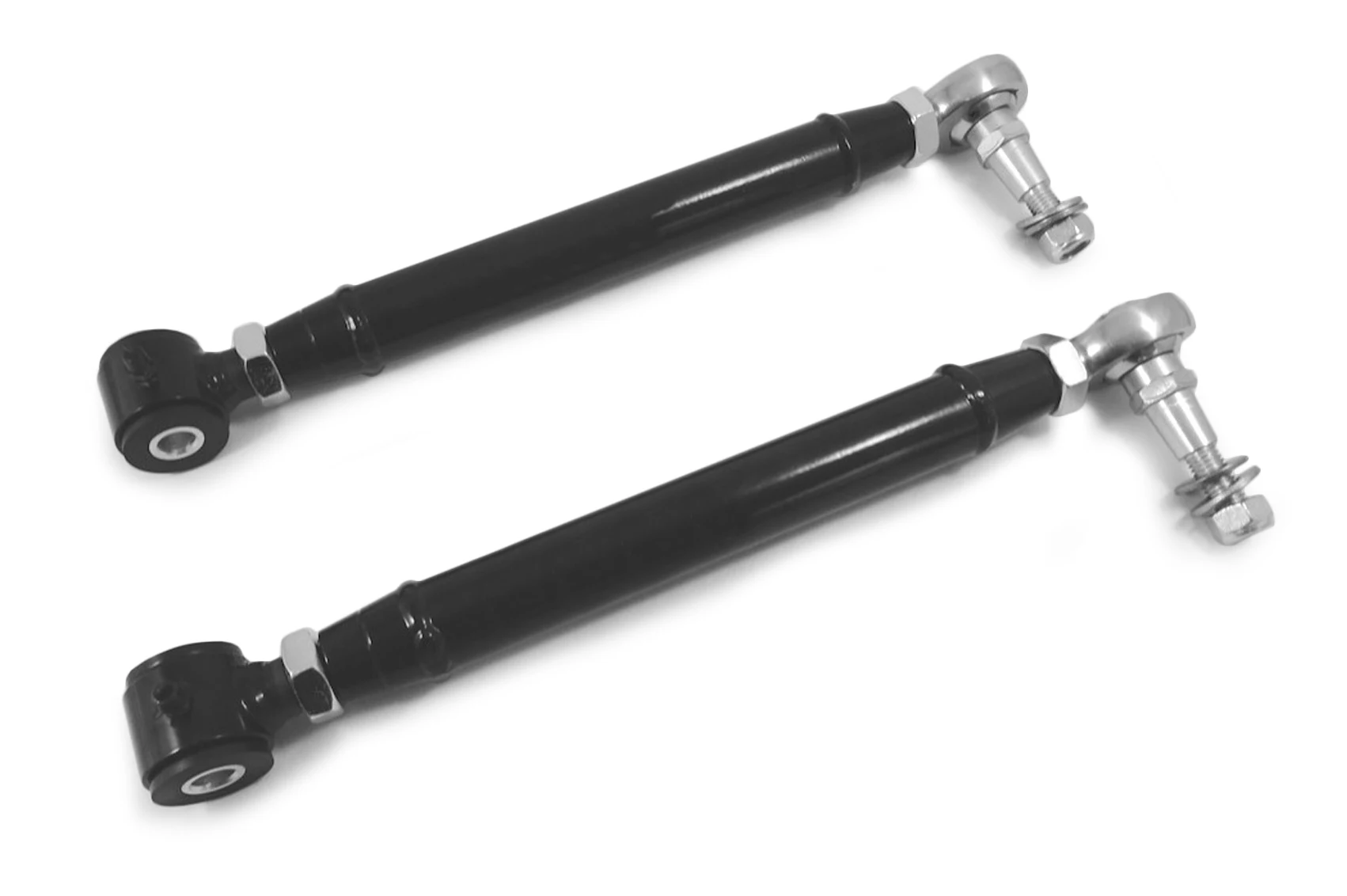

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$47.26 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 5/8-18 RH |
|---|---|
| Length | 4 |
| Bore diameter | 0.5 |
| Width | 2 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $47.26 |
| 2+ | $36.19 |
| 3+ | $35.36 |
| 4+ | $27.03 |
| 5+ | $26.78 |
| 10+ | $23.64 |
| 25+ | $22.02 |
| 50+ | $18.63 |
| 100+ | $15.88 |
| 250+ | $15.59 |
| 500+ | $15.58 |
| 1,000+ | $15.58 |

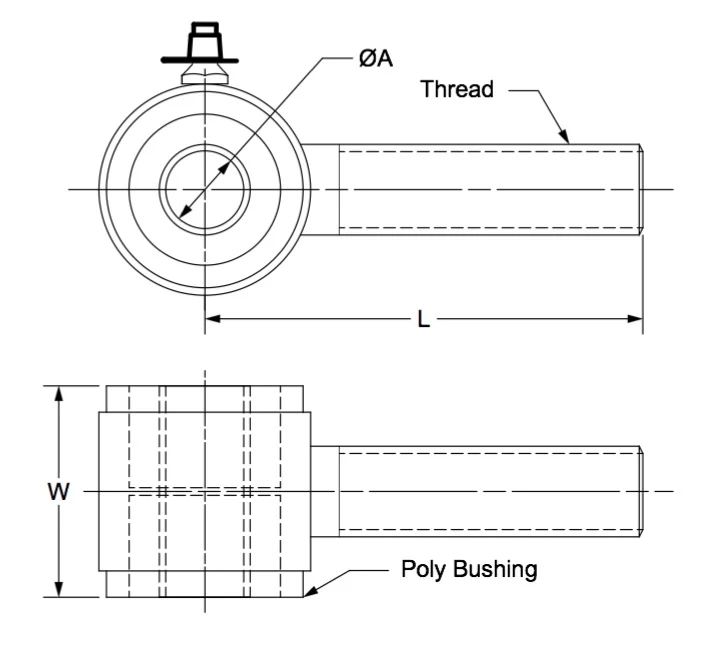

Drawing dimensions
| Threads | 5/8-18 RH |
|---|---|
| A | 0.500 |
| L | 4.000 |
| W | 2.00 |
Lettered dimensions refer to the drawing for this part.
Product information
Tubular Housing: DOM Seamless ASTM 513 Type 5 Housing. Painted Black finish.
Polyurethane Bushings: Two Black polyurethane bushing halves per kit.

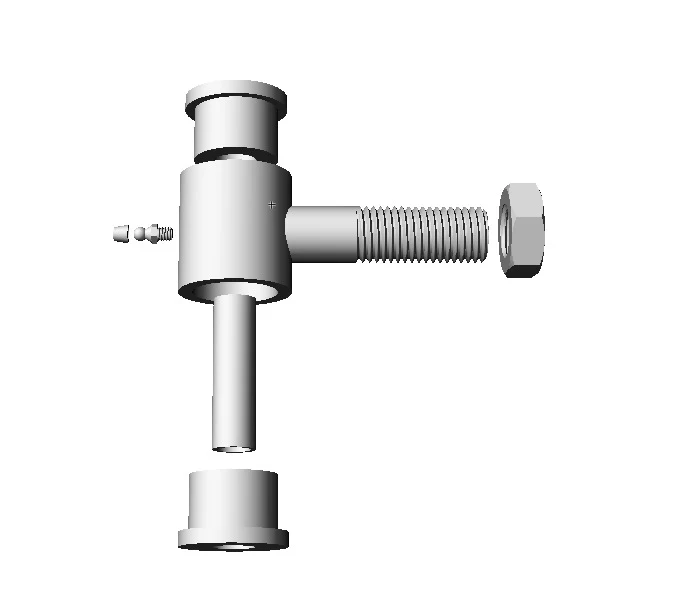

Metal Insert/Sleeve: Each part includes (1) DOM tubular sleeve (or insert), plated zinc clear (silver), (1) grease zerk, (1) grease zerk cap, and (1) zinc plated grade 2 jam nut.
Finish: the grease zerk, tubular bushing and jam nut are all zinc plated. The Bushing Housing is powder painted black. The Housing stud is bare metal.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
