TBM-20L-10-2.50-B
TBM-20L-10-2.50-B, Rod Ends, Isolated, Male 1.25-12 LH 0.625 Bore 2.50 Width 4.625 Length
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$66.67 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1.25-12 LH |
|---|---|
| Length | 4.625 |
| Bore diameter | 0.625 |
| Width | 2.5 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $66.67 |
| 2+ | $58.68 |
| 3+ | $44.66 |
| 4+ | $44.24 |
| 5+ | $39.60 |
| 10+ | $39.10 |
| 25+ | $31.10 |
| 50+ | $26.51 |
| 100+ | $26.46 |
| 250+ | $25.99 |
| 500+ | $25.98 |
| 1,000+ | $25.97 |

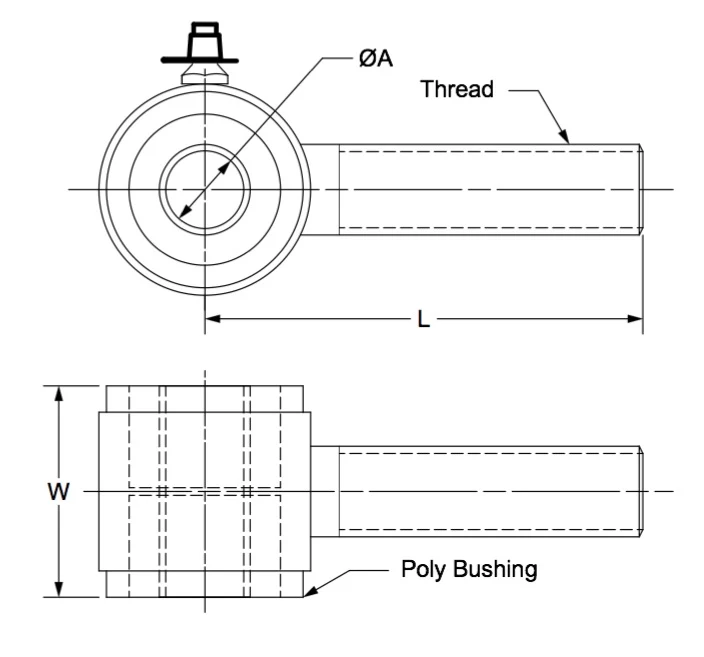

Drawing dimensions
| Threads | 1.25-12 LH |
|---|---|
| A | 0.625 |
| L | 4.625 |
| W | 2.50 |
Lettered dimensions refer to the drawing for this part.
Product information
Tubular Housing: DOM Seamless ASTM 513 Type 5 Housing. Painted Black finish.
Polyurethane Bushings: Two Black polyurethane bushing halves per kit.
Metal Insert/Sleeve: Each part includes (1) DOM tubular sleeve (or insert), plated zinc clear (silver), (1) grease zerk, (1) grease zerk cap, and (1) zinc plated grade 2 jam nut.
Finish: the grease zerk, tubular bushing and jam nut are all zinc plated. The Bushing Housing is powder painted black. The Housing stud is bare metal.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
