MCPClevis and Yoke Ends · Female
TC250
TC250, Clevis and Yoke Ends, Female 1/4-28 RH 0.250 Pin Holes Patented Barrel eliminates need for LH Threads
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$13.37 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1/4-28 RH |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $13.37 |
| 2+ | $8.22 |
| 3+ | $7.39 |
| 4+ | $6.41 |
| 5+ | $6.16 |
| 10+ | $4.97 |
| 30+ | $3.73 |
| 50+ | $2.82 |
| 100+ | $2.49 |
| 150+ | $2.48 |
| 300+ | $2.25 |
| 450+ | $1.96 |
| 600+ | $1.96 |
| 1,200+ | $1.68 |

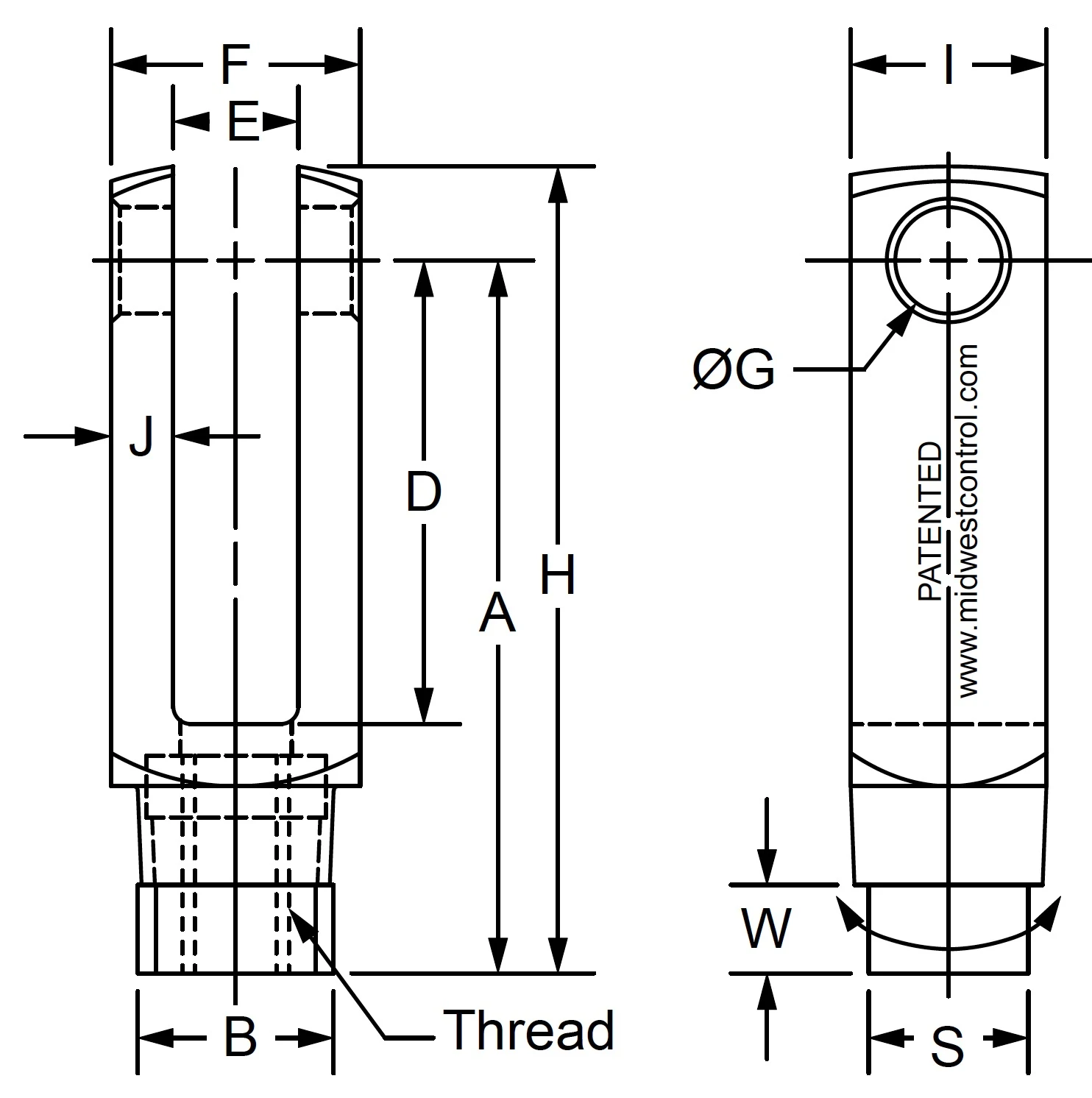

Drawing dimensions
| Threads | 1/4-28 RH |
|---|---|
| A | 2.000 |
| B | 0.4688 |
| D | 1.250 |
| E | 0.281 |
| F | 0.625 |
| G | 0.250 |
| H | 2.21 |
| I | 0.505 |
| J | 0.141 |
| S | 0.375 |
| W | 0.250 |
Lettered dimensions refer to the drawing for this part.
Product information

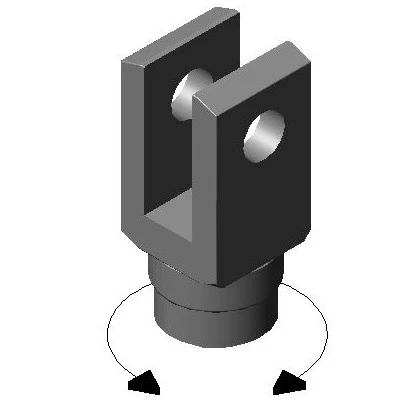

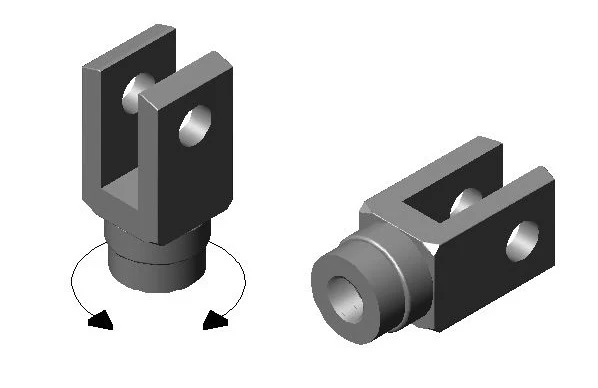

Patented Design: Our Turnbuckle Clevis features a special PATENTED TURNBUCKLE feature that allows the yoke assembly to be adjusted after installation without disconnecting the entire linkage assembly, and eliminates the need for left hand threads. Typical applications include linkage rods and/or push-pull cable linkages where it's advantageous to be able to micro adjust the overall length of the linkage assembly WITHOUT having to remove the clevis pin or clevis spring pin to do so. In other words, using a turnbuckle clevis in your rod or push-pull cable linkage assembly makes after installation adjustment much easier.
Material: Low carbon steel.
Plating: Zinc Yellow Dichromate finish
Video: https://www.youtube.com/watch?v=U793tfUOUOs
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More clevis and yoke ends
Compare specifications and drawings to select the right part.
