MCPRods, Threaded · M12 x 1.75 LH/RH
TR12-90
TR12-90, Rods, Threaded, M12 x 1.75 LH/RH 90 mm Long Plated Steel with 40 mm of thread length on each end

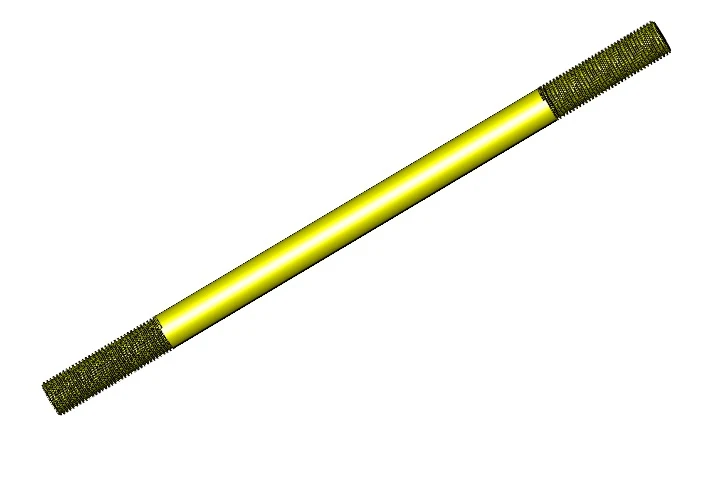

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$16.49 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Length | 90 mm |
|---|---|
| Thread length | 40 mm |
| Material | Plated Steel |
| Thread | M12 x 1.75 LH/RH |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $16.49 |
| 2+ | $12.87 |
| 3+ | $12.04 |
| 4+ | $10.22 |
| 5+ | $9.97 |
| 10+ | $7.65 |
| 25+ | $5.67 |
| 50+ | $5.01 |
| 100+ | $4.68 |
| 250+ | $3.95 |
| 500+ | $3.38 |
| 1,000+ | $3.31 |

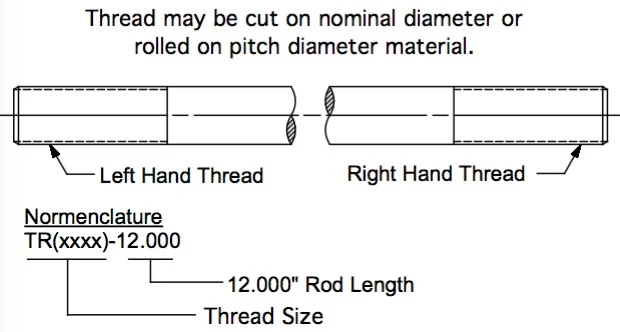

Drawing dimensions
| Threads | M12 x 1.75 LH/RH |
|---|---|
| Thread Length | 40 |
| Part Length | 90 |
| Overall Length if Assembled DIN to Ball Joints | 129 to 136 |
| Overall Length if Assembled to DIN Sphcl Rod Ends | 146 to 166 |
| Overall Length if Assembled to DIN Short Clevises | 126 to 162 |
| Overall Length if Assembled to DIN Long Clevises | 158 to 210 |
| Material | Plated Steel |
Lettered dimensions refer to the drawing for this part.
Product information
Finish: plated zinc with a yellow dichromate treatment.
Length Determination: the dimensions above show what center-to-center length can be achieved by the rod length shown for the various of linkage end options (ie: ball joints, clevises/yoke ends, spherical rod ends).
Material: low carbon steel.
Specials: specials are available at any volume.
Standards: MCP offers standard threaded rod lengths to provide fast and economical linkage options.
