Rod End Studs · Install Your Own

TS-8-9-9.460°

TS-8-9-9.460°, Rod End Studs, Install Your Own 1/2-20 RH 9/16-18 RH Tapered Stud 9.46° Taper

Product image
TS-8-9-9.460° product image

$38.76 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

MaterialGrade 8
Finish / platingHard Chrome
Connection 1 thread9/16-18 RH
Connection 2 thread1/2-20 RH

Values without units follow the drawing.

Drawing & dimensions

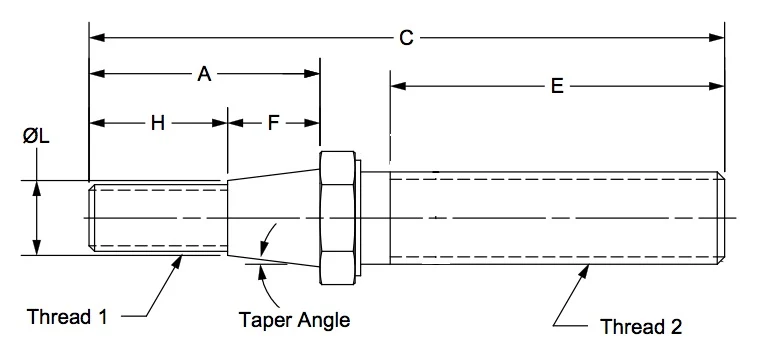

TS-8-9-9.460° dimension drawing
Thread 19/16-18 RH
Thread 21/2-20 RH
A1.550
B0.250
C4.482
D3.000
E2.675
F0.675
G1.000
H0.875
L0.620
Taper Angle9.46°
FinishHard Chrome
MaterialGrade 8
Item envelope L × W × H (in)4.482 × 0.625 × 0.625
Unit weight (lb)0.452

Lettered dimensions refer to the drawing for this part.

Additional photos

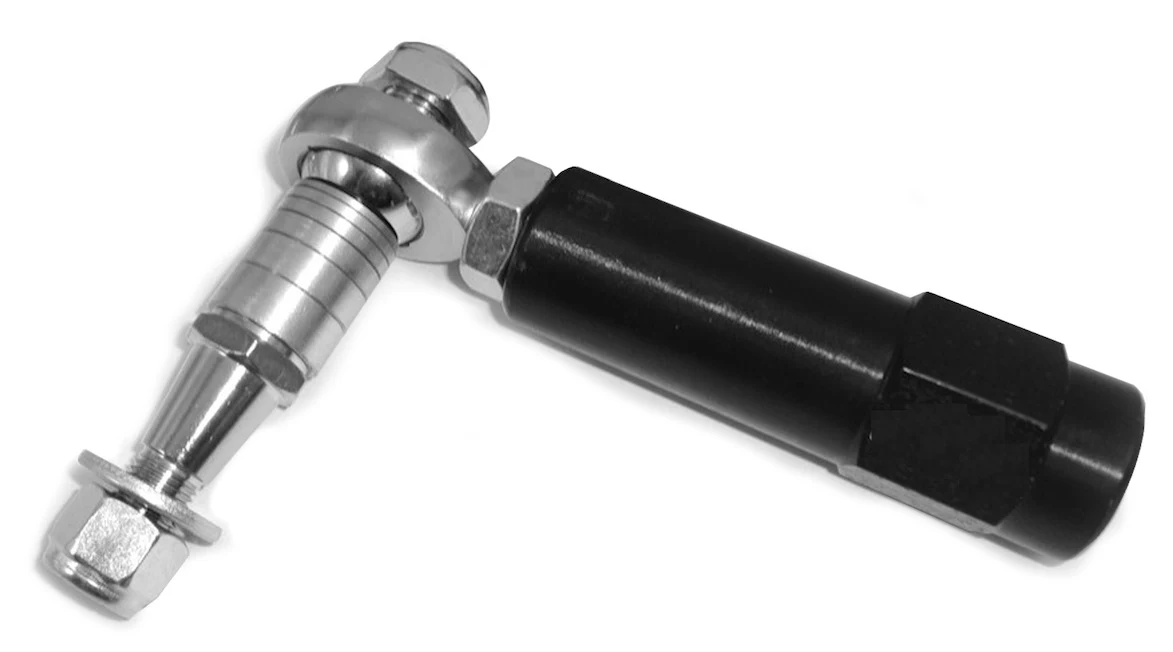

Additional product photo
TS-8-9-9.460° additional product photo

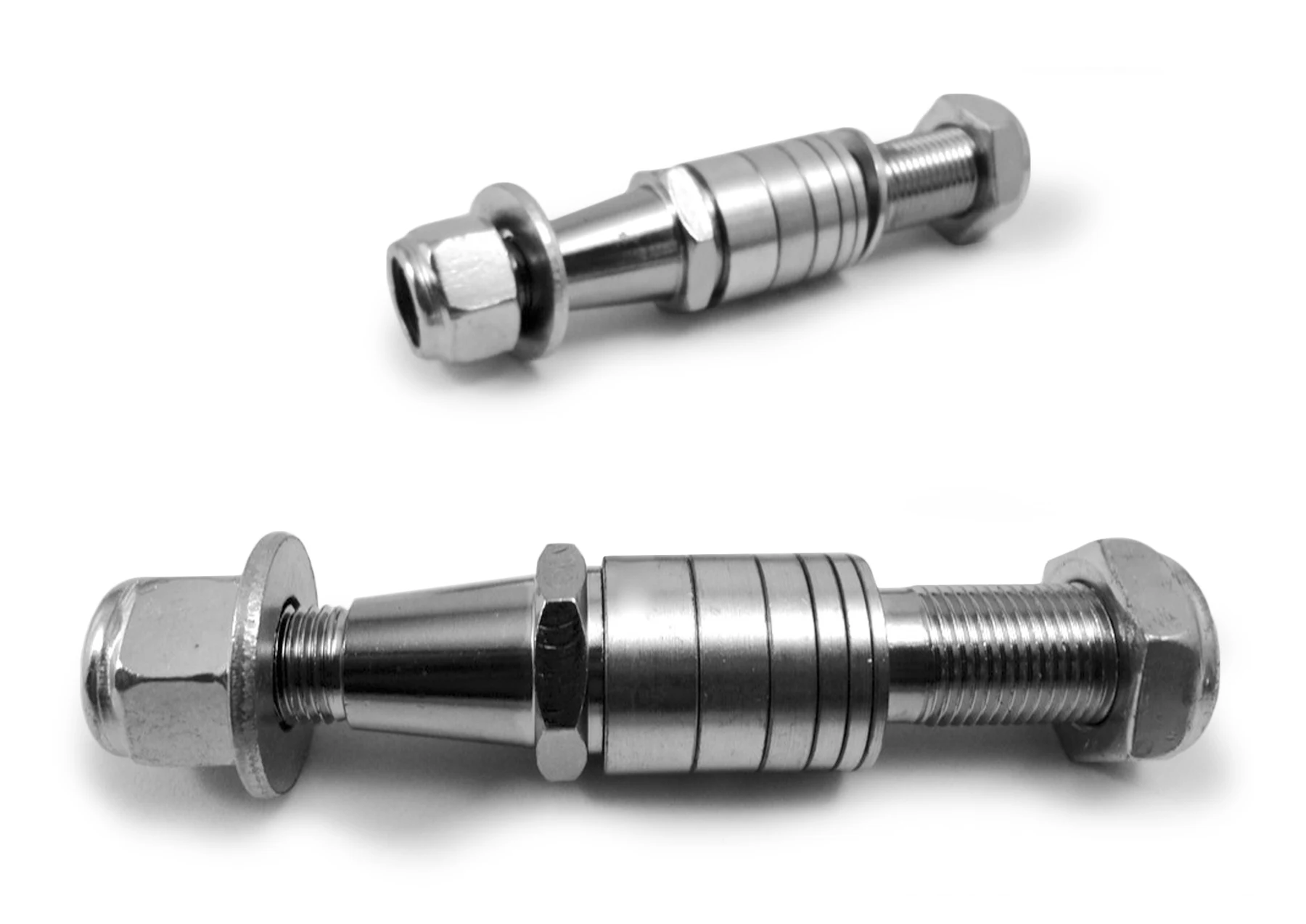

Additional product photo
TS-8-9-9.460° additional product photo

Drawings & photo downloads

Public previews are available above. A free account is required to download original files; sign in once and every file downloads in one click.You're signed in. Files download straight to your computer.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

QuantityPrice per piece
1+$38.76
2+$28.05
3+$24.94
4+$24.52
5+$24.27
10+$18.30
25+$16.18
50+$14.71
100+$12.83

Product information

Kit: This kit includes the tapered stud for do-it-yourself (field installable) rod end stud installation, spacers, and two lock nuts. Materials: the nuts and spacers are zinc plated. The tapered stud is grade 8 material, hard chrome plated. Typical Application: Automotive aftermarket bump steer heim joint kits Note... • 'B' dimension is the wrench flat thickness • 'D' dimension is the long stem length (dim 'E') from below the wrench flat 'head', but does not include a short dimension of transition between the wrench flat head and the beginning of the long 'E' threads. • 'G' dimension is the width across the wrench flat's 'flats'.
