Turnbuckles · 3/4-16 LH and RH Threads

TSK12-21.00

Name: TSK12-21.00 — Turnbuckles
Brand: Midwest Control Products
SKU: 2159
Price: 40.46 USD

TSK12-21.00, Turnbuckles, 3/4-16 LH and RH Threads 21.00 Overall Length 1.0 OD x .095 W DOM Tubing

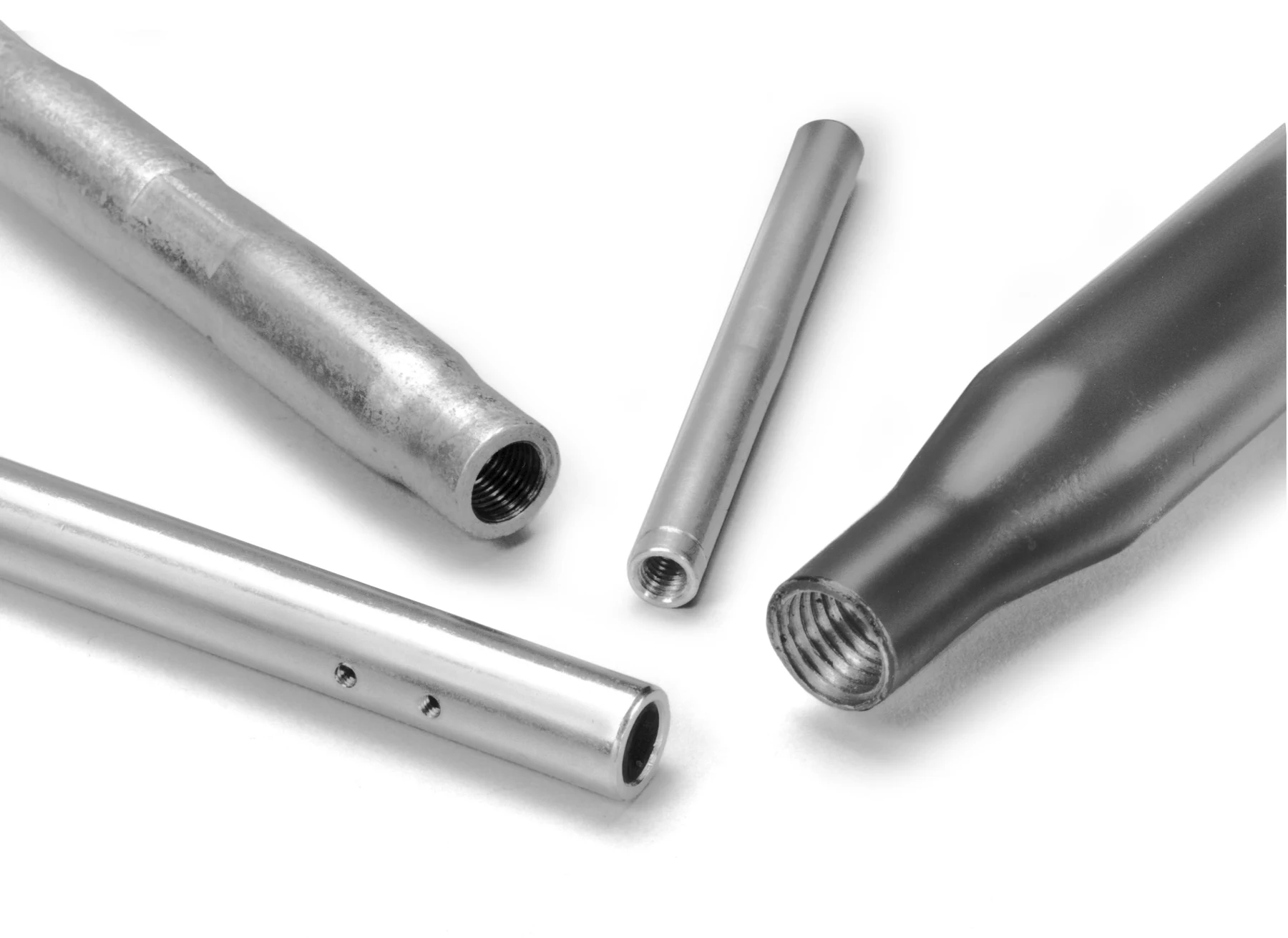

TSK12-21.00 product image — Product image

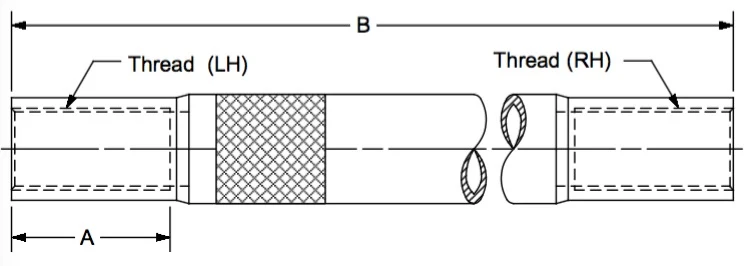

TSK12-21.00 dimension drawing 1 — Dimension drawing 1

Additional photos

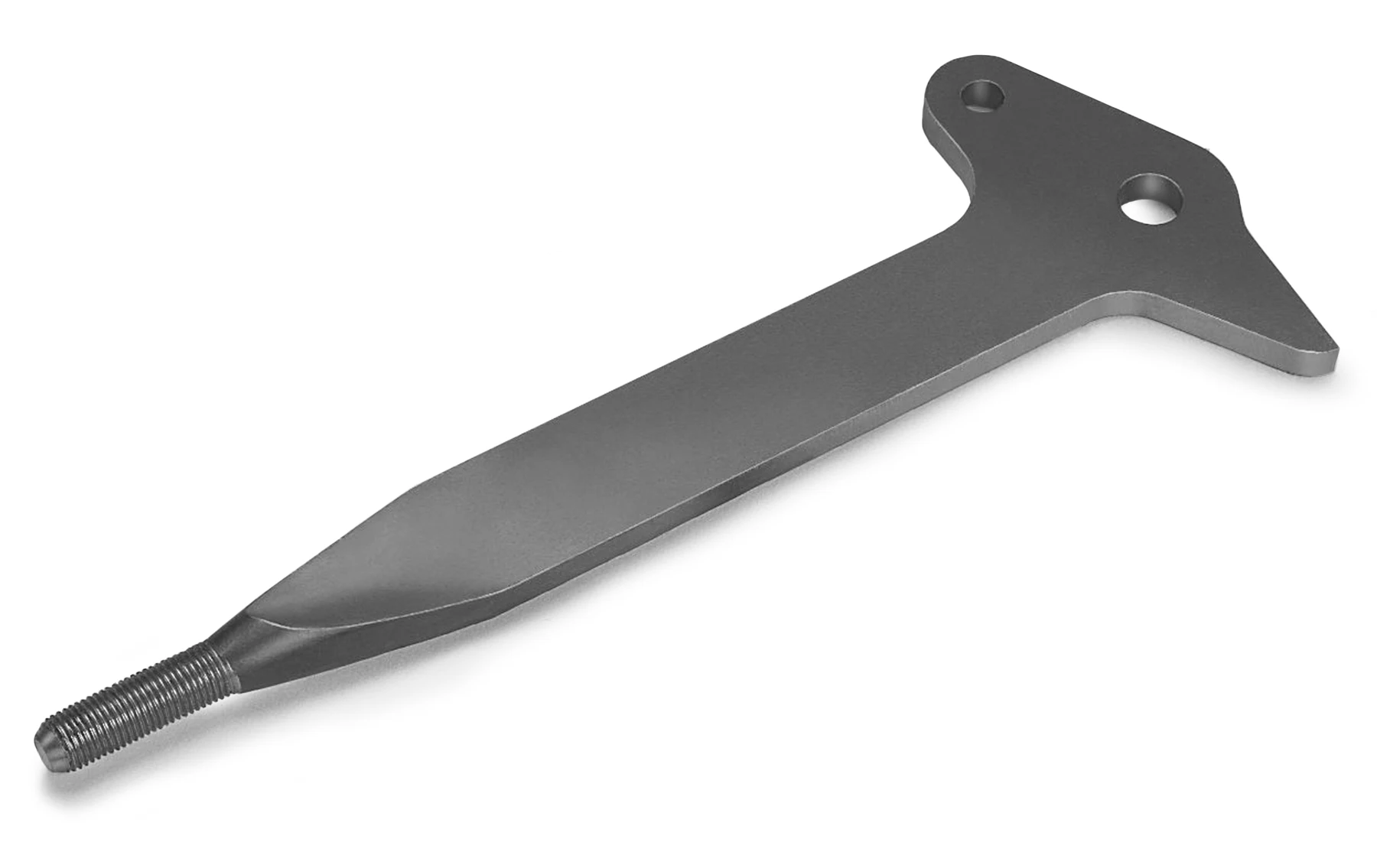

TSK12-21.00 additional product photo — Additional product photo

Drawings, photos & CAD downloads

Public previews are available above. A free account is required to download original files.

$40.46 per piece at 1+ quantity

Choose quantity / request quote

Confirm lead time and availability when requesting a quote.

Specifications

Finish / plating	Zinc Yellow

Values without units follow the drawing.

Volume list pricing

USD per piece. Volume and dealer pricing are confirmed on quote.

Quantity	Price per piece
1+	$40.46
2+	$33.54
3+	$29.95
4+	$29.53
5+	$22.65
10+	$19.94
25+	$18.53
50+	$15.67
100+	$13.34

Drawing dimensions

Finish	Zinc Yellow
Threads LH/RH	3/4-16
A	1.5
B	21.00
DOM Tubing	1.0 OD x .095 W

Lettered dimensions refer to the drawing for this part.

Product information

Material: low carbon steel (1018) Application: Tie rods used in coordination with spherical rod ends. Finish: plated zinc clear Feature: 'Forged' Threads Custom Parts: Midwest Control Products Corp custom swages, threads, machines and fabricates thousands of customer-specific unique pipe and tube fabrications.
