WS088-373-099-188FZC, Cable End Fittings, Special, 0.088 Wire Diameter 0.248 Pin Diameter 0.760 Overall Length Wire Stop Style
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$18.54 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | M5 x 0.8 RH |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $18.54 |
| 2+ | $11.91 |
| 3+ | $10.16 |
| 4+ | $9.74 |
| 5+ | $8.35 |
| 10+ | $6.93 |
| 25+ | $4.68 |
| 50+ | $4.12 |
| 100+ | $4.07 |
| 250+ | $3.23 |
| 500+ | $2.76 |
| 1,000+ | $2.76 |

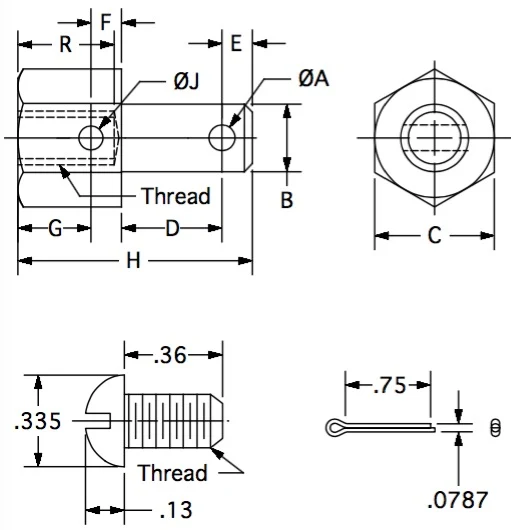

Drawing dimensions
| Threads | M5 x 0.80 RH |
|---|---|
| A | 0.095 |
| B | 0.248 |
| C | 0.438 |
| D | 0.261 |
| E | 0.114 |
| F | 0.112 |
| G | 0.273 |
| H | 0.760 |
| J | 0.088 |
| R | 0.365 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: Wire Stops are typically attached to the end of a cable.
Construction: machined from low carbon steel. Product includes the housing, screw and cotter.
Plating: plated zinc with a clear chromate finish.
Specials: special housing sizes and configurations are available in volume.
