MCPBearings, Spherical Rod End · Male
WSE-10-13
WSE-10-13, Bearings, Spherical Rod End, Male 5/8-18 RH Non-Threaded Weldable Stem, Steel Race 0.626 Bore
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$34.89 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Bore diameter | 0.626 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $34.89 |
| 2+ | $25.13 |
| 3+ | $24.30 |
| 4+ | $21.86 |
| 5+ | $21.61 |
| 10+ | $16.27 |
| 25+ | $14.35 |
| 50+ | $13.04 |

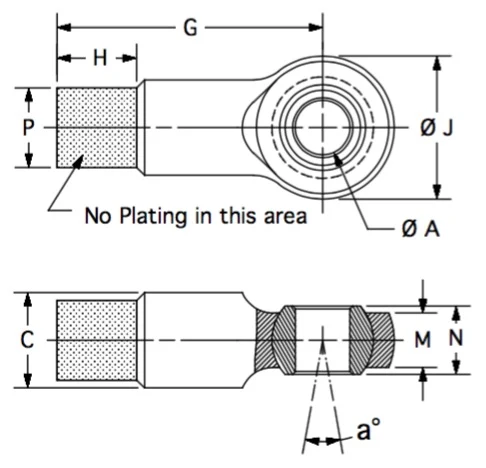

Drawing dimensions
| a° | 22 |
|---|---|
| A | 0.626 |
| C | 1.000 |
| G | 2.625 |
| H | 0.750 |
| J | 1.500 |
| M | 0.484 |
| N | 0.0750 |
| P | 0.795 |
Lettered dimensions refer to the drawing for this part.
Product information
Bearing Race: Steel
Finish: Bright Polished Chrome Plated
Description: Weld in spherical rod end.

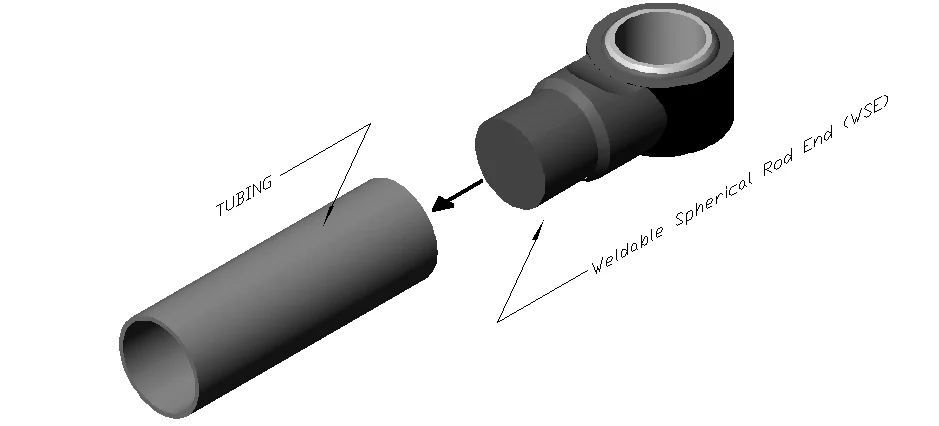

Application: These unique spherical rod end comes with a non-threaded and non-plated stem so that it can be welded into a tube. The rest of the rod end is plated.
