MCPBearings, Spherical Rod End · Male
WSE-12-20

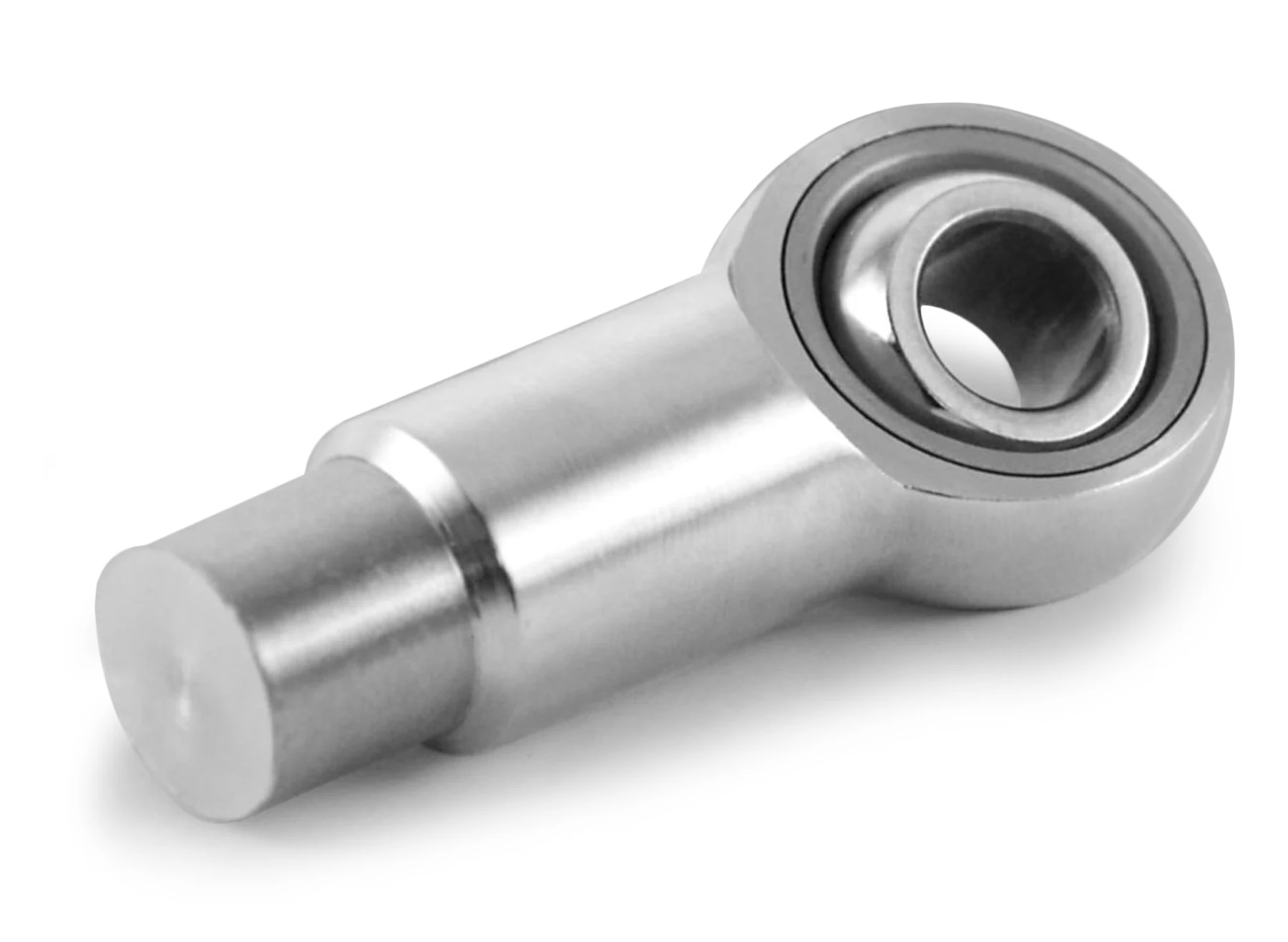

WSE-12-20, Bearings, Spherical Rod End, Male 3/4-16 RH Non-Threaded Weldable Stem, Steel Race 0.751 Bore
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$16.54 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Bore diameter | 0.751 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $16.54 |
| 2+ | $12.92 |
| 3+ | $12.09 |
| 4+ | $10.27 |
| 5+ | $10.02 |
| 10+ | $7.70 |
| 25+ | $5.72 |
| 50+ | $5.06 |

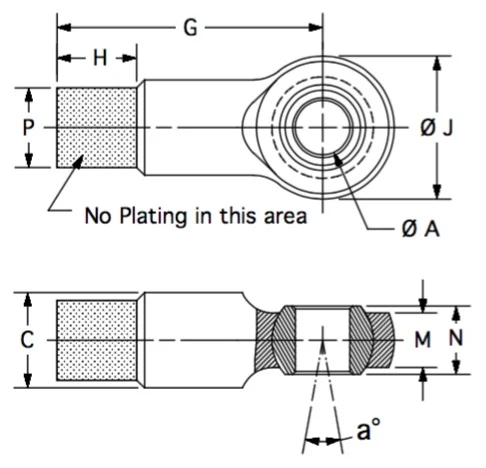

Drawing dimensions
| a° | 18 |
|---|---|
| A | 0.751 |
| C | 1.500 |
| G | 2.875 |
| H | 1.000 |
| J | 1.755 |
| M | 0.593 |
| N | 0.875 |
| P | 1.235 |
Lettered dimensions refer to the drawing for this part.
Product information
Bearing Race: Steel
Finish: Bright Polished Chrome Plated
Description: Weld in spherical rod end.

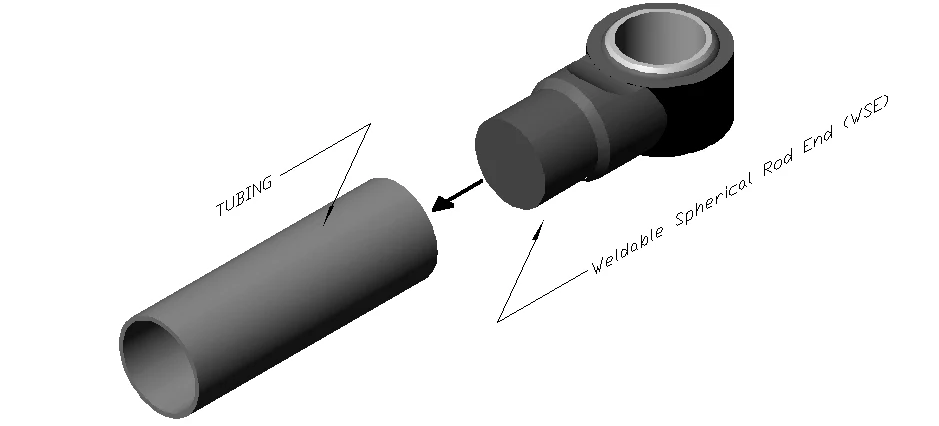

Application: These unique spherical rod end comes with a non-threaded and non-plated stem so that it can be welded into a tube. The rest of the rod end is plated.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More bearings, spherical rod end
Compare specifications and drawings to select the right part.
