MCPTube Thread Bungs · Female
WTFH-10R-0.855

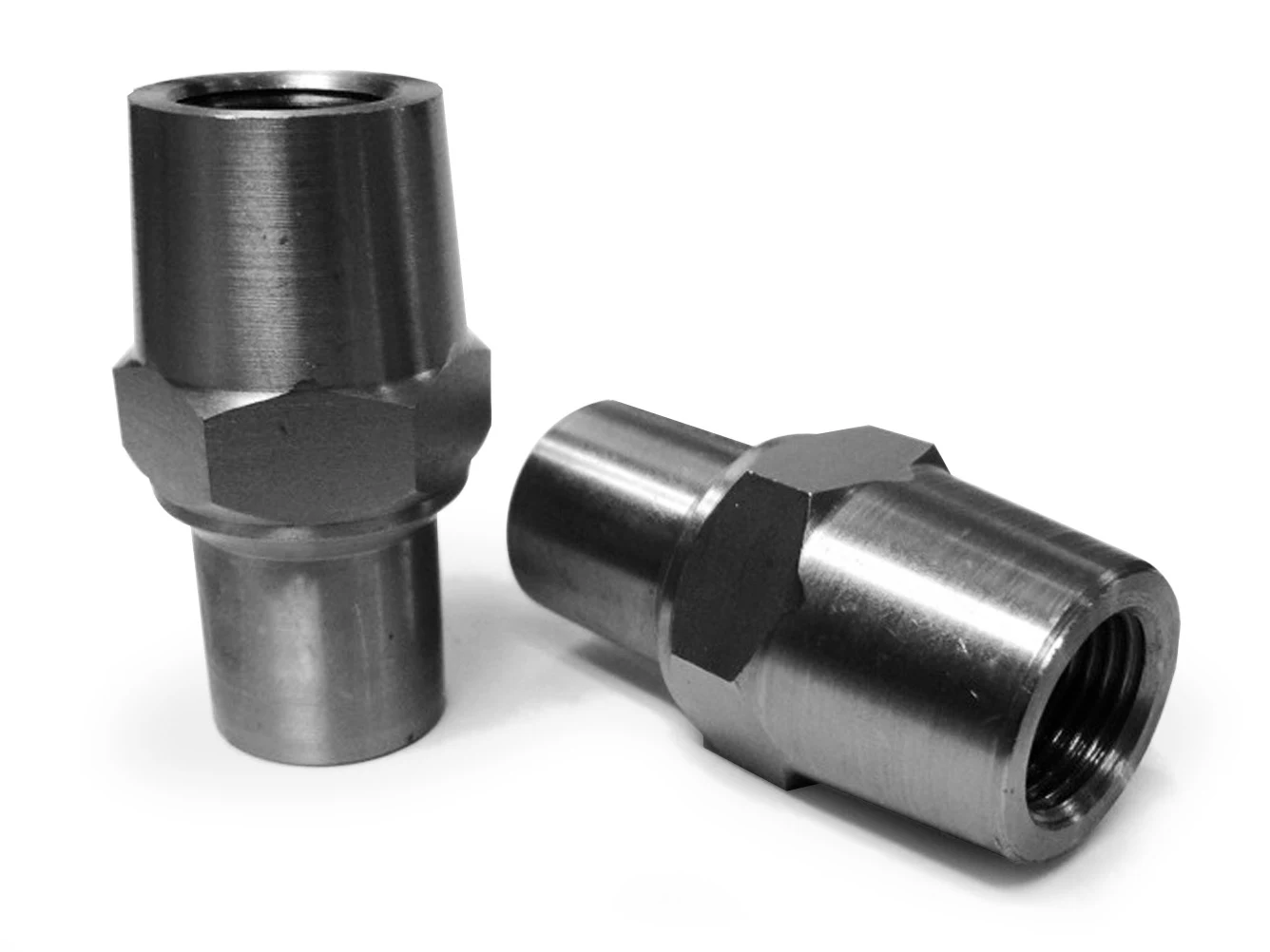

WTFH-10R-0.855, Tube Thread Bungs, Female 5/8-18 RH Hex Barrel Style
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$18.14 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 5/8-18 RH |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $18.14 |
| 2+ | $14.36 |
| 3+ | $13.53 |
| 4+ | $11.51 |
| 5+ | $9.98 |
| 10+ | $8.68 |
| 25+ | $6.46 |
| 50+ | $5.71 |
| 100+ | $5.34 |

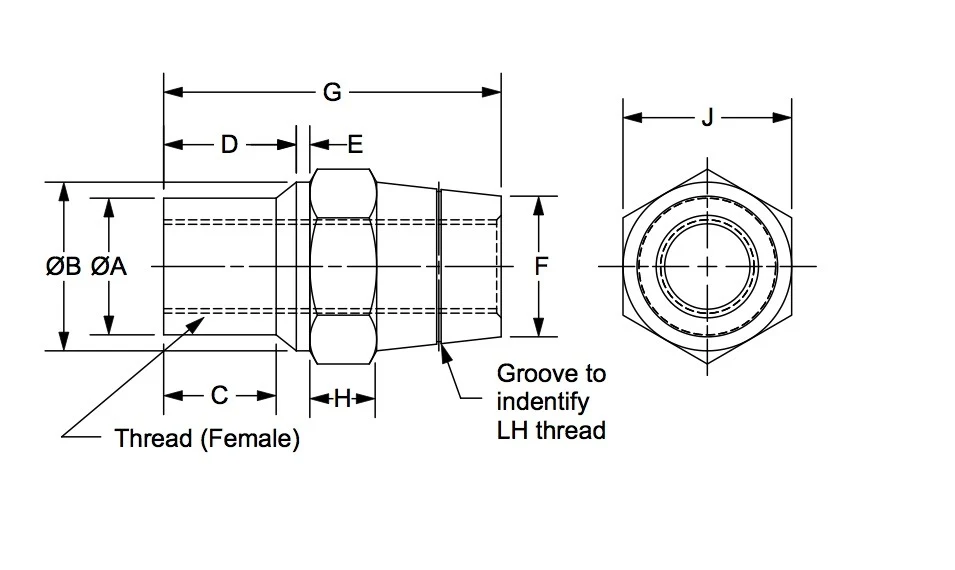

Drawing dimensions
| Thread | 5/8-18 RH |
|---|---|
| A | 0.855 |
| B | 1.000 |
| C | 0.750 |
| D | 0.840 |
| E | 0.06 |
| F | 0.875 |
| G | 2.000 |
| J | 0.375 |
| H | 1.000 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: chrome moly
Feature: built in hex shaped wrench flat

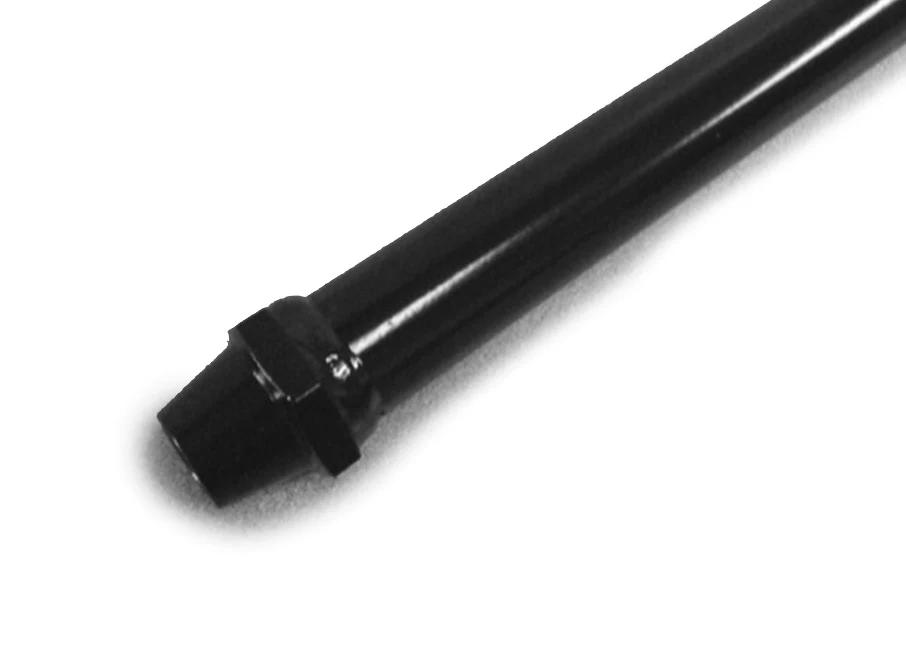

Application: our thread bungs are typically welded into the end of a pipe or tubing. Parts are to only be welded by certified welders - not suitable for all applications.
CAUTION: use weld-in threads with caution! Only certified welders should weld our WTFH components. Amperage, voltage, wire feed, inductance settings, fillet size, etc. - all influence weld penetration and safety. Selection of the correct tube size, and suitability of a thread size for an application is the customer’s sole responsibility. Use at your own risk.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
