MCPTube Thread Bungs · Female
WTFS-20L-1.495

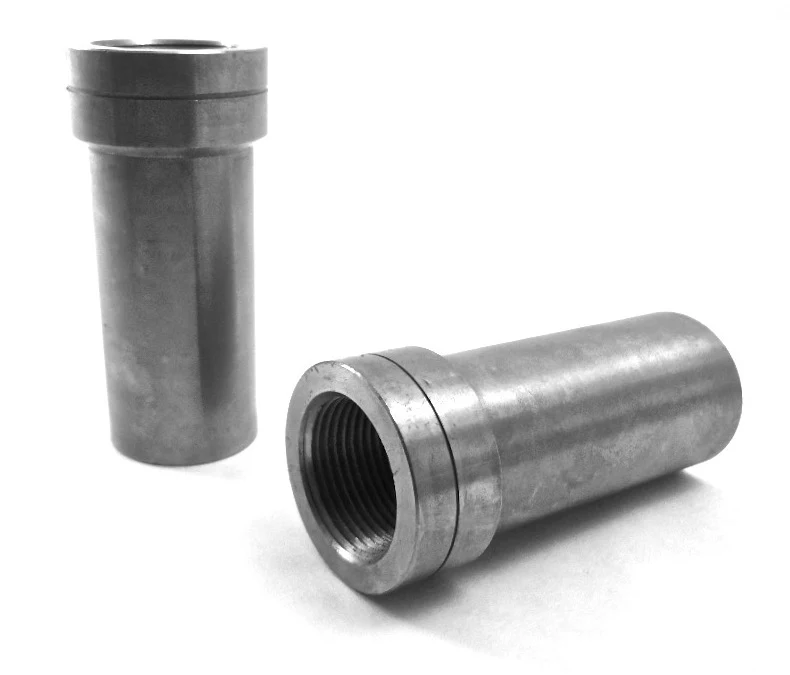

WTFS-20L-1.495, Tube Thread Bungs, Female 1.25-12 LH Bull Nose Style
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$30.01 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1.25-12 LH |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $30.01 |
| 2+ | $24.13 |
| 3+ | $20.60 |
| 4+ | $18.50 |
| 5+ | $18.25 |
| 10+ | $13.70 |
| 30+ | $12.02 |
| 60+ | $10.92 |
| 90+ | $9.54 |
| 120+ | $9.53 |
| 240+ | $8.13 |

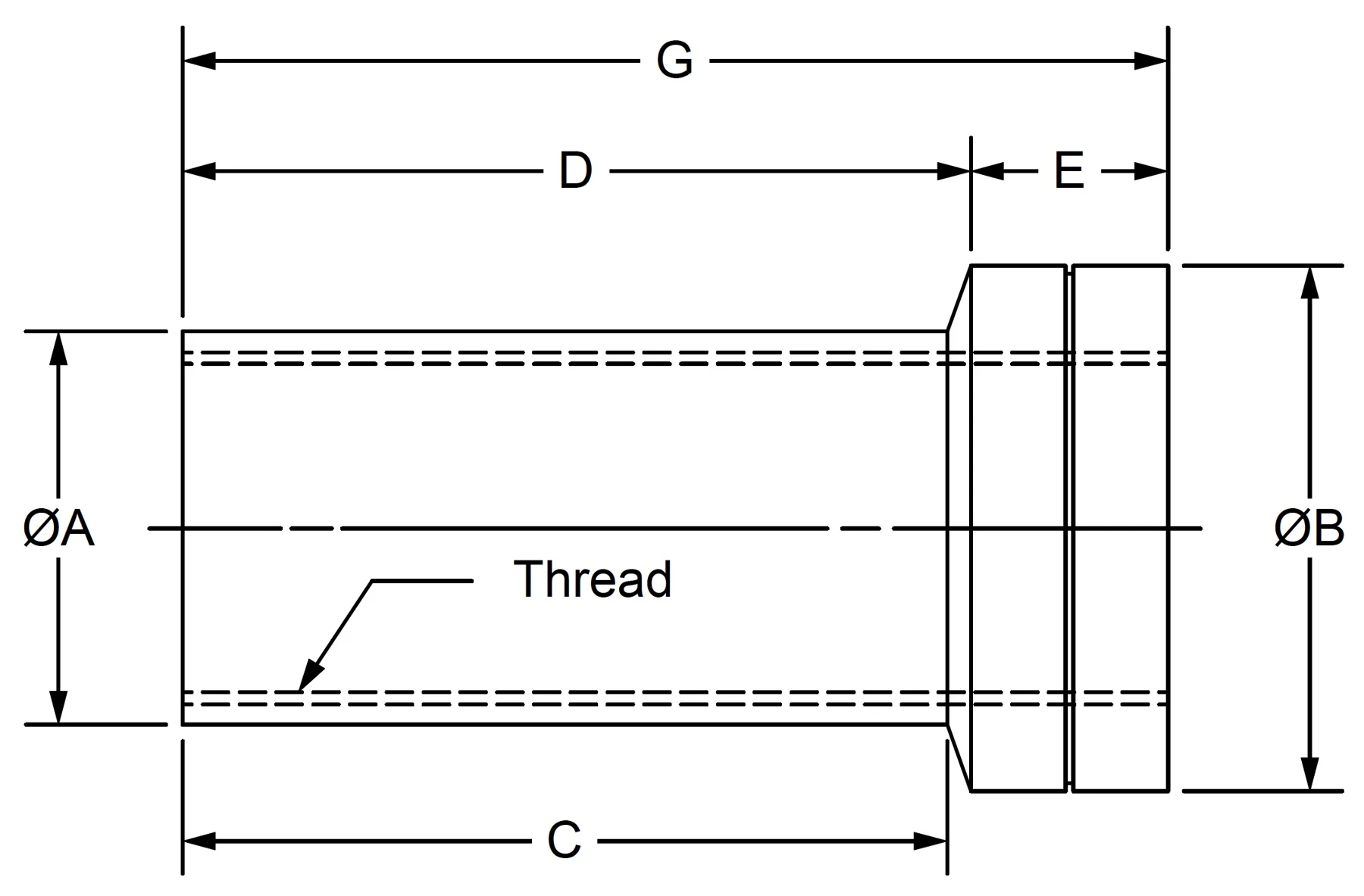

Drawing dimensions
| Threads | 1.25-12 LH |
|---|---|
| A | 1.495 |
| B | 1.750 |
| C | 2.910 |
| D | 3.000 |
| E | 0.750 |
| G | 3.750 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: chrome moly
Application: our thread bungs are typically welded into the end of a pipe or tubing. Parts are to only be welded by certified welders - not suitable for all applications.
CAUTION: use weld-in threads with caution! Only certified welders should weld our WTFS components. Amperage, voltage, wire feed, inductance settings, fillet size, etc. - all influence weld penetration and safety. Selection of the correct tube size, and suitability of a thread size for an application is the customer’s sole responsibility. Use at your own risk.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More tube thread bungs
Compare specifications and drawings to select the right part.
