MCPTube Thread Bungs · Male
WTM-8L-0.920
WTM-8L-0.920, Tube Thread Bungs, Male 1/2-20 LH Fits Tube ID of 0.920 Chrome Moly
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$18.44 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1/2-20 LH |
|---|---|
| Fits tube inside diameter | 0.92 |
| Material | Chrome Moly |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $18.44 |
| 2+ | $14.63 |
| 3+ | $13.80 |
| 4+ | $11.75 |
| 5+ | $10.19 |
| 10+ | $8.87 |

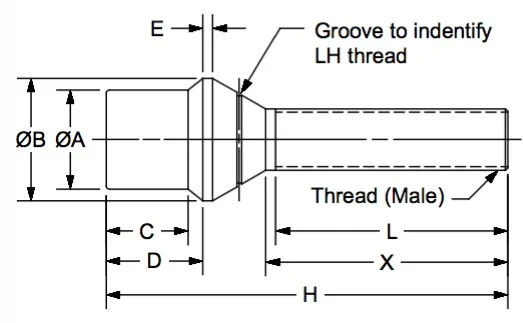

Drawing dimensions
| Material | Chrome Moly |
|---|---|
| Threads | 1/2-20 LH |
| A | 0.920 |
| B | 1.125 |
| C | 0.625 |
| D | 0.715 |
| E | 0.060 |
| H | 4.626 |
| J | 3.250 |
| X | 3.310 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: chrome moly
Application: our male thread studs are typically welded into the end of a pipe or tubing. Parts are to only be welded by certified welders - not suitable for all applications.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
