MCPBearings, Spherical Rod End · Male
XBSM-10

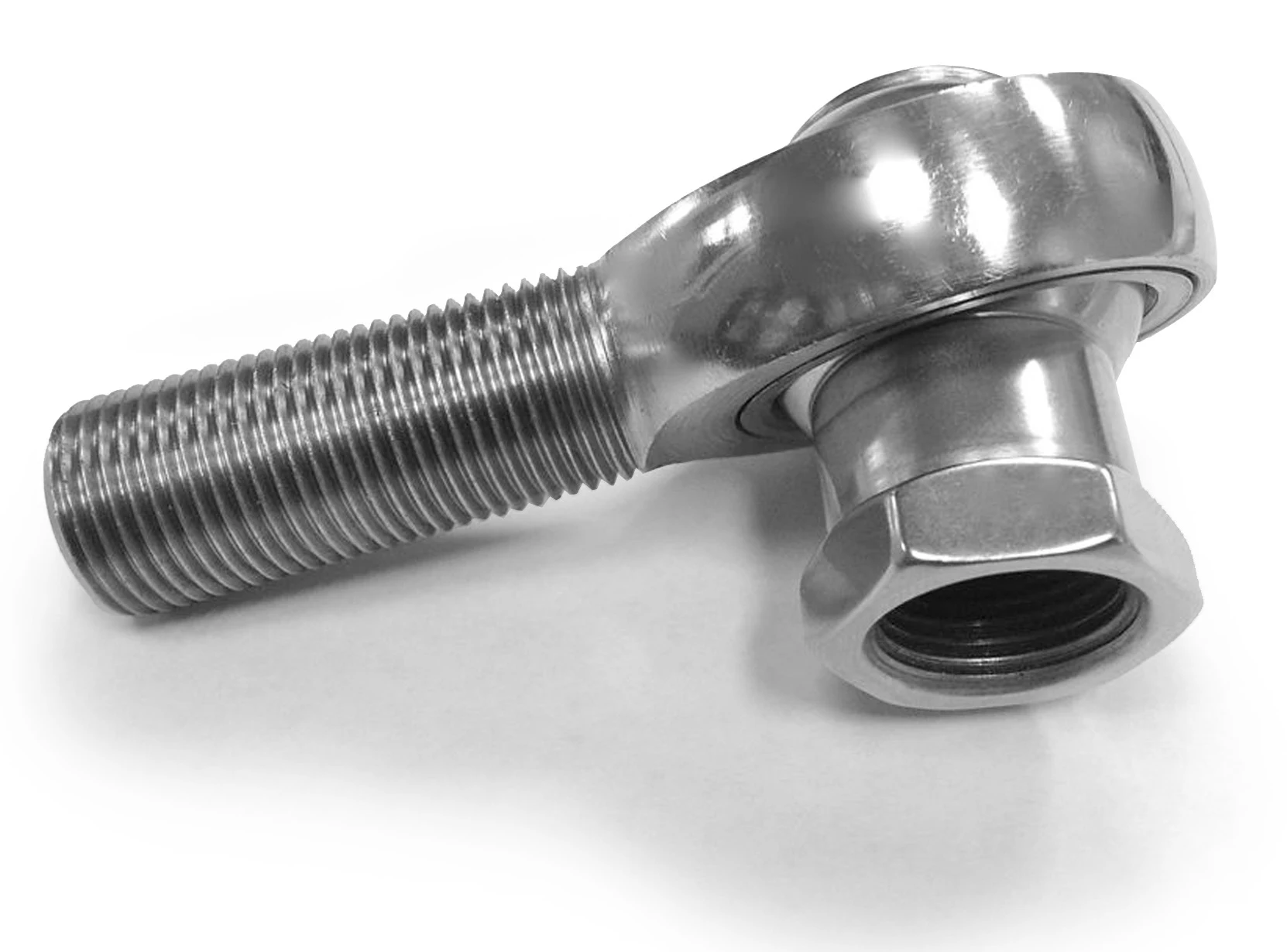

XBSM-10, Bearings, Spherical Rod End, Male 5/8-18 RH Chrome Moly Housing, PTFE Race 5/8-18 RH Internal Threads on Ball ID Integral High Misalignment Insert
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$53.00 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Housing construction | Chrome Moly |
|---|---|
| Race material | PTFE |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $53.00 |
| 2+ | $40.76 |
| 3+ | $39.93 |
| 4+ | $30.51 |
| 5+ | $30.26 |
| 10+ | $26.76 |
| 30+ | $24.18 |
| 60+ | $21.09 |
| 90+ | $18.06 |
| 120+ | $18.05 |
| 150+ | $18.04 |
| 210+ | $17.73 |

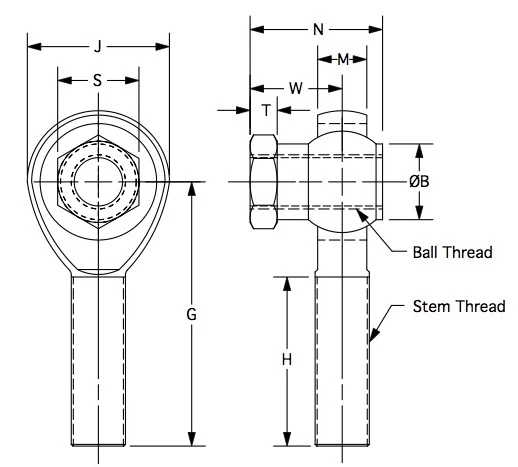

Drawing dimensions
| Stem Threads | 5/8-18 RH |
|---|---|
| Ball ID Threads | 5/8-18 RH |
| B | 0.813 |
| G | 2.625 |
| H | 1.625 |
| J | 1.500 |
| M | 0.484 |
| N | 1.570 |
| G | 0.875 |
| T | 0.281 |
| W | 1.121 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: This unique spherical rod end bearing (heim joint) has the unique feature of threads on the ball ID, as well as a built-in high misalignment offset. Ideal for bump steer applications in the automotive aftermarket accessory market.
Housing: chrome moly steel, bright polished chrome plated
Video: https://www.youtube.com/watch?v=zmNXIQz2fuw
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More bearings, spherical rod end
Compare specifications and drawings to select the right part.
