Architectural · Truss Plates
Y1-5/12-4-4-5-B
Y1-5/12-4-4-5-B, Architectural, Truss Plates 5/12 Pitch 0.250 Thick Steel Black Powder Coated
$94.16 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.

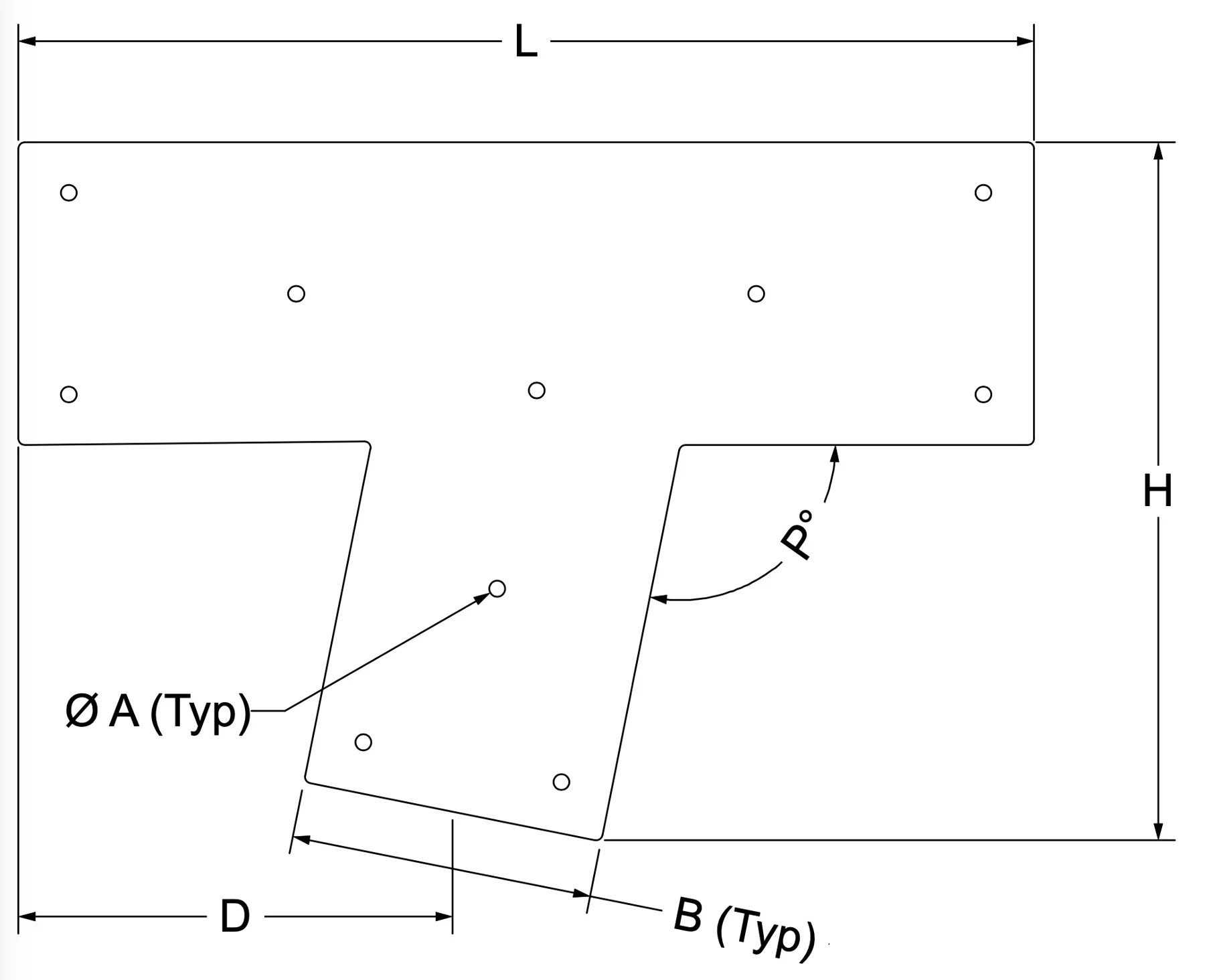

Drawing & dimensions
Drawings & photo downloads
Public previews are available above. A free account is required to download original files; sign in once and every file downloads in one click.You're signed in. Files download straight to your computer.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $94.16 |
| 2+ | $58.62 |
| 3+ | $54.96 |
| 4+ | $51.29 |
| 5+ | $37.40 |
| 10+ | $26.79 |
| 25+ | $20.14 |
| 50+ | $17.07 |
| 100+ | $16.83 |
| 250+ | $16.60 |
Product information
Material: 0.250 inch thick 1018 steel
Made in the USA
Powder Coated: flat Black
Important Ordering Information: Architectural Truss Plates...
Stock Status & Lead Times: Inventory availability is refreshed periodically and confirmed at checkout. Stock can change between updates.
• Standard Lead Times: If an item is not currently on the shelf, manufacturing typically takes 3 to 5 weeks.
• Verification: To confirm immediate availability or get a precise timeline, please contact us at [email protected] before placing your order.
Finish & Shipping Expectations: Our plates are finished with a high-quality powder coating. However, due to the weight and nature of industrial freight, minor cosmetic abrasions can occur during transit.
• The "5-Foot Rule": Our quality standard follows the industry guideline: if a cosmetic imperfection is not visible from a distance of five feet, it is considered acceptable.
• Highly Aesthetic Projects: If your project requires a highly cosmetic finish, we recommend not ordering through the automated website. Instead, email us for a custom quote so we can discuss specialized crating or your preferred carrier.
Cancellations & Returns: Because most truss plates are fabricated or finished to order, we maintain a strict production schedule.
• 24-Hour Window: Cancellations are only permitted within 24 hours of order placement.
• No Returns: We do not accept returns on truss plates. Please double-check all dimensions and engineering specifications for your project before finalizing your purchase.
Large Project Pricing (Orders Over $1,000): For orders exceeding $1,000, we recommend requesting a formal quote via [email protected]. Why? A custom quote allows us to bypass website freight calculators, often resulting in more accurate shipping rates and giving you the flexibility to designate your own freight carrier.
Custom Projects/Designs: We laser cut, bend, powder paint in-house. If you have a steel or aluminum plate project that you need quoted, feel free to email your project to us at [email protected].
LEGAL AND SAFETY DISCLAIMER — NON-STRUCTURAL USE ONLY
Cosmetic Purpose: All truss plates and decorative hardware sold by Midwest Control Products Corp are designed solely for architectural enhancement and cosmetic applications.
No Load-Bearing Capacity: Our products are not engineered, load-rated, or tested for structural support, tension, compression, or weight-bearing capacity. They must never be used in place of certified structural connectors, gusset plates, or engineering-approved hardware.
Professional Inspection & Installation: It is the buyer's and installer's sole responsibility to ensure that all underlying structural framing is fully engineered and self-supporting independent of our decorative plates. Always verify compliance with local building codes, structural engineering requirements, and safety regulations with a qualified professional before installation.
Limitation of Liability: Midwest Control Products Corp assumes no liability or responsibility for improper installation, misuse, or structural failure resulting from using non-structural plates in load-bearing capacity.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More architectural
Compare specifications and drawings to select the right part.
