Clevis and Yoke Ends · Female
YK03F04SP

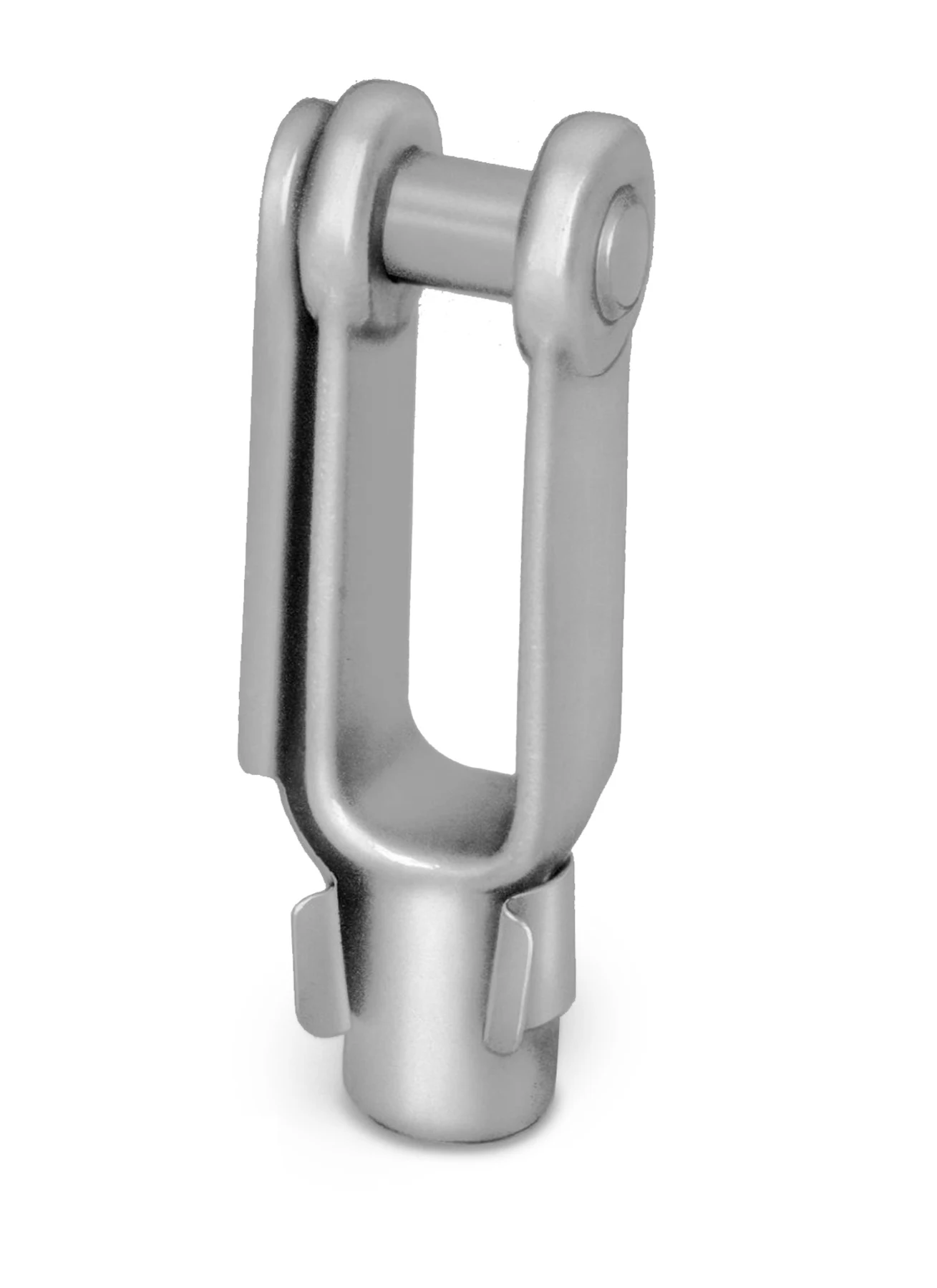

YK03F04SP, Clevis and Yoke Ends, Female 10-32 RH 0.250 Pin Holes Plated Zinc Clear Hex Free Forged Construction Includes Clevis Spring Pin


Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.71 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 10-32 RH |
|---|---|
| Finish / plating | Zinc Clear Hex Free |
| Spring pin included | Yes |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.71 |
| 2+ | $4.18 |
| 3+ | $3.91 |
| 4+ | $3.65 |
| 5+ | $3.80 |
| 10+ | $3.61 |
| 25+ | $3.27 |
| 50+ | $3.13 |
| 100+ | $3.09 |
| 250+ | $3.04 |
Drawing dimensions
| Thread | 10-32 RH |
|---|---|
| Plating | Zinc Clear Hex Free |
| A | 2.000 |
| B | 0.438 |
| D | 1.250 |
| E | 0.281 |
| F | 0.625 |
| G | 0.250 |
| H | 2.21 |
| I | 0.500 |
| J | 0.141 |
| Spring Pin Included | Yes |
Lettered dimensions refer to the drawing for this part.
Product information
Application: adjustable yoke ends (also called "clevis ends") are typically assembled to the end of a rod, pipe, tube or cable linkage and are then attached via a clevis pin to a mounting point.
Kit includes (1) forged yoke end (zinc plated), (1) clevis spring pin (zinc plated)
Construction: forged low carbon steel. Dimensions are per SAE J493. Tolerances are per our standard.
Finish: zinc plated
Other names: Horquillas Forjadas, adjustable clevis ends, adjustable yoke ends, billet ends, billet linkage, billet rods, cable end, cable yoke end, cetop G3, chapes, clevis end, clevis rod end bearing, clevis rod ends, clevis yoke, forged clevis end, forged yoke end, gabelkopf, gabelkopfe, gelenkkopf, gelenkkopfe, heavy duty yoke linkages, linkage design, linkage ends, machined steel clevises, mechanical controls, plated yoke ends, plated linkages, rod end clevis, rod ends, sae clevis ends, sae yoke ends, splintbolzen, throttle yoke end, throttle rod end, threaded clevises, yoke ends
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
