MCPHydraulic Adapters · Union, Male-Female, Swivel, Pipe (NPTF) - Pipe (NPSM)
1404-04-02

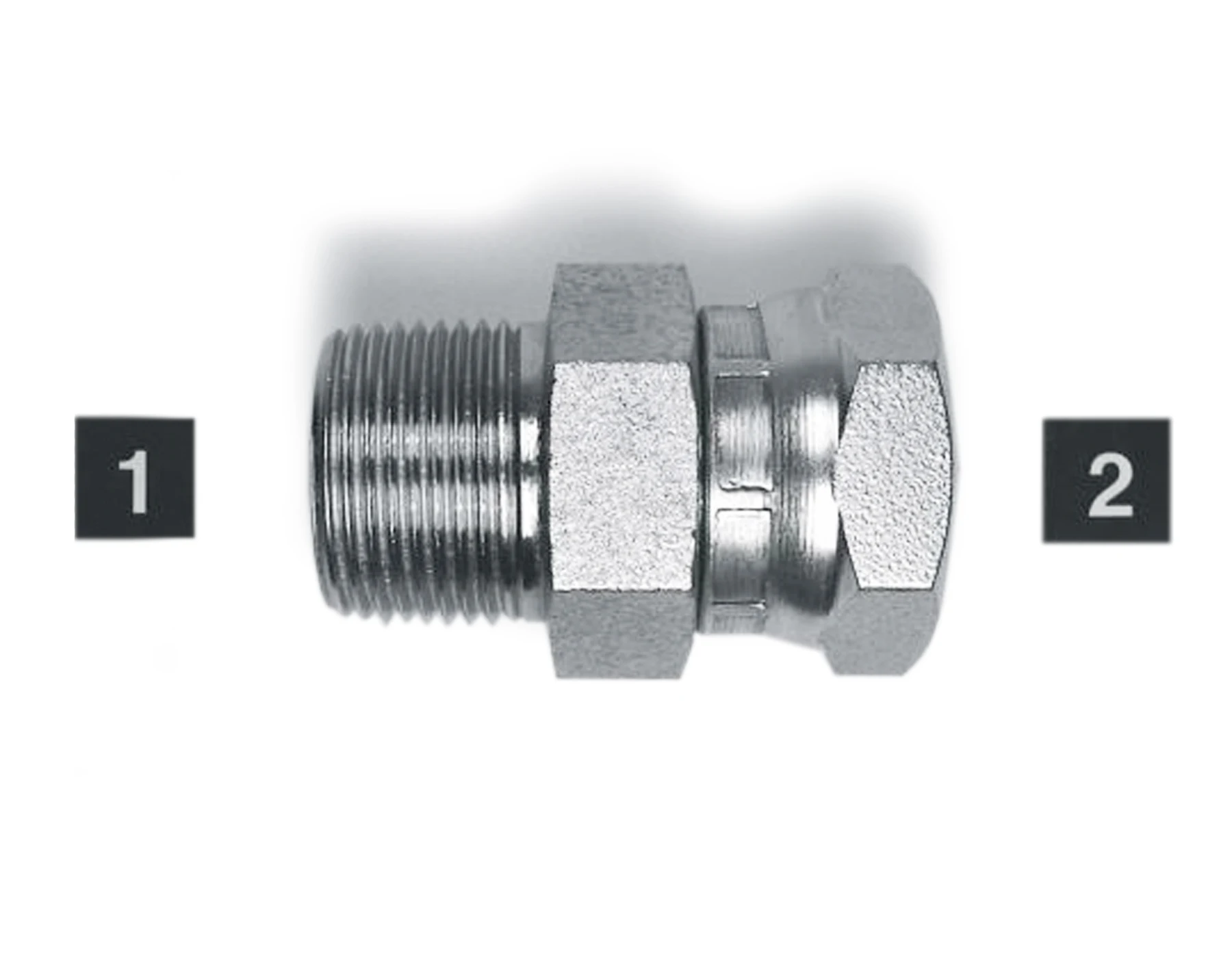

1404-04-02, Hydraulic Adapters, Union, Male-Female, Swivel, Pipe (NPTF) - Pipe (NPSM) 1/4-18 1/8-27
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.86 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Body thread | 1/4-18 |
|---|---|
| Nut thread | 1/8-27 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.86 |
| 2+ | $3.36 |
| 3+ | $2.53 |
| 4+ | $2.11 |
| 5+ | $1.86 |
| 10+ | $1.36 |
| 25+ | $0.79 |
| 50+ | $0.63 |
| 75+ | $0.53 |
| 100+ | $0.51 |
| 250+ | $0.39 |
| 500+ | $0.29 |

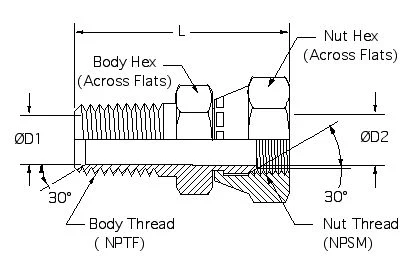

Drawing dimensions
| Body Thread | 1/4-18 |
|---|---|
| Nut Thread | 1/8-27 |
| Body Hex | 11/16 |
| Nut Hex | 9/16 |
| D1 | 0.281 |
| D2 | 0.152 |
| L | 1.27 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
