MCPHydraulic Adapters · Union, Male-Female, Swivel, Pipe (NPTF) - Pipe (NPSM)
1404-06-04
1404-06-04, Hydraulic Adapters, Union, Male-Female, Swivel, Pipe (NPTF) - Pipe (NPSM) 3/8-18 1/4-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.06 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Body thread | 3/8-18 |
|---|---|
| Nut thread | 1/4-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.06 |
| 2+ | $3.56 |
| 3+ | $2.72 |
| 4+ | $2.31 |
| 5+ | $2.06 |
| 10+ | $1.55 |
| 25+ | $0.93 |
| 50+ | $0.76 |
| 75+ | $0.63 |
| 100+ | $0.55 |
| 250+ | $0.48 |
| 500+ | $0.36 |

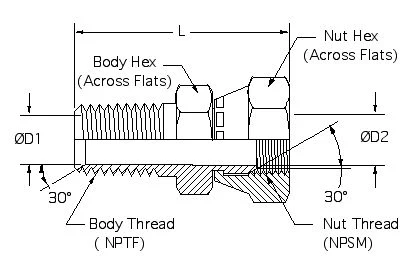

Drawing dimensions
| Body Thread | 3/8-18 |
|---|---|
| Nut Thread | 1/4-18 |
| Body Hex | 11/16 |
| Nut Hex | 11/16 |
| D1 | 0.406 |
| D2 | 0.221 |
| L | 1.55 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
