MCPHydraulic Adapters · Elbow, 45°, Female, Swivel, Pipe (NPTF) - Pipe (NPSM)
1504-04-04
1504-04-04, Hydraulic Adapters, Elbow, 45°, Female, Swivel, Pipe (NPTF) - Pipe (NPSM) 1/4-18 1/4-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.56 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Body thread | 1/4-18 |
|---|---|
| Nut thread | 1/4-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.56 |
| 2+ | $4.06 |
| 3+ | $3.22 |
| 4+ | $2.81 |
| 5+ | $2.56 |
| 10+ | $1.57 |
| 25+ | $1.16 |
| 50+ | $0.94 |
| 75+ | $0.79 |
| 100+ | $0.72 |

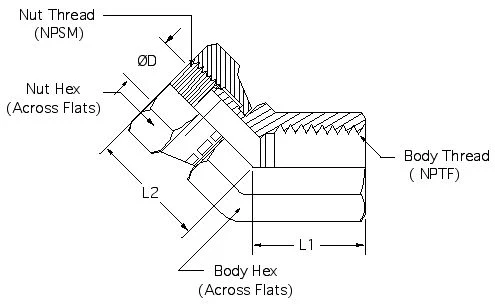

Drawing dimensions
| Body Thread | 1/4-18 |
|---|---|
| Nut Thread | 1/4-18 |
| Body Hex | 3/4 |
| Nut Hex | 11/16 |
| D | 0.188 |
| L1 | 0.91 |
| L2 | 0.93 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More hydraulic adapters
Compare specifications and drawings to select the right part.
