1504-06-04, Hydraulic Adapters, Elbow, 45°, Female, Swivel, Pipe (NPTF) - Pipe (NPSM) 3/8-18 1/4-18
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$8.39 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Body thread | 3/8-18 |
|---|---|
| Nut thread | 1/4-18 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $8.39 |
| 2+ | $5.89 |
| 3+ | $4.99 |
| 4+ | $4.58 |
| 5+ | $3.32 |
| 10+ | $2.59 |
| 25+ | $2.01 |
| 50+ | $1.55 |
| 100+ | $1.16 |
| 250+ | $1.02 |
Drawing dimensions
| Body Thread | 3/8-18 |
|---|---|
| Nut Thread | 1/4-18 |
| Body Hex | 7/8 |
| Nut Hex | 11/16 |
| D | 0.221 |
| L1 | 1.00 |
| L2 | 0.95 |

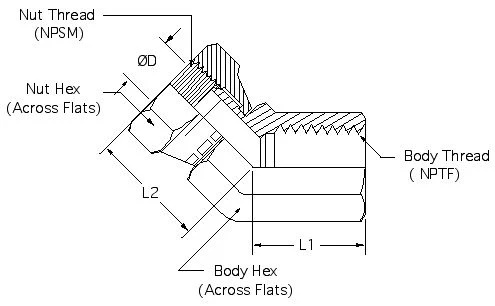

Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated.
