MCPHydraulic Adapters · Union, Male, JIC
2403-12-12

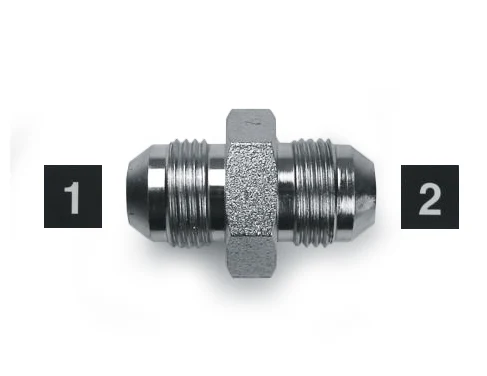

2403-12-12, Hydraulic Adapters, Union, Male, JIC 1 1/16-12 1 1/16-12
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.28 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 1 1/16-12 |
|---|---|
| Connection 2 thread | 1 1/16-12 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.28 |
| 2+ | $3.78 |
| 3+ | $2.94 |
| 4+ | $2.53 |
| 5+ | $2.28 |
| 10+ | $1.75 |
| 25+ | $0.99 |
| 50+ | $0.79 |
| 75+ | $0.67 |
| 100+ | $0.66 |

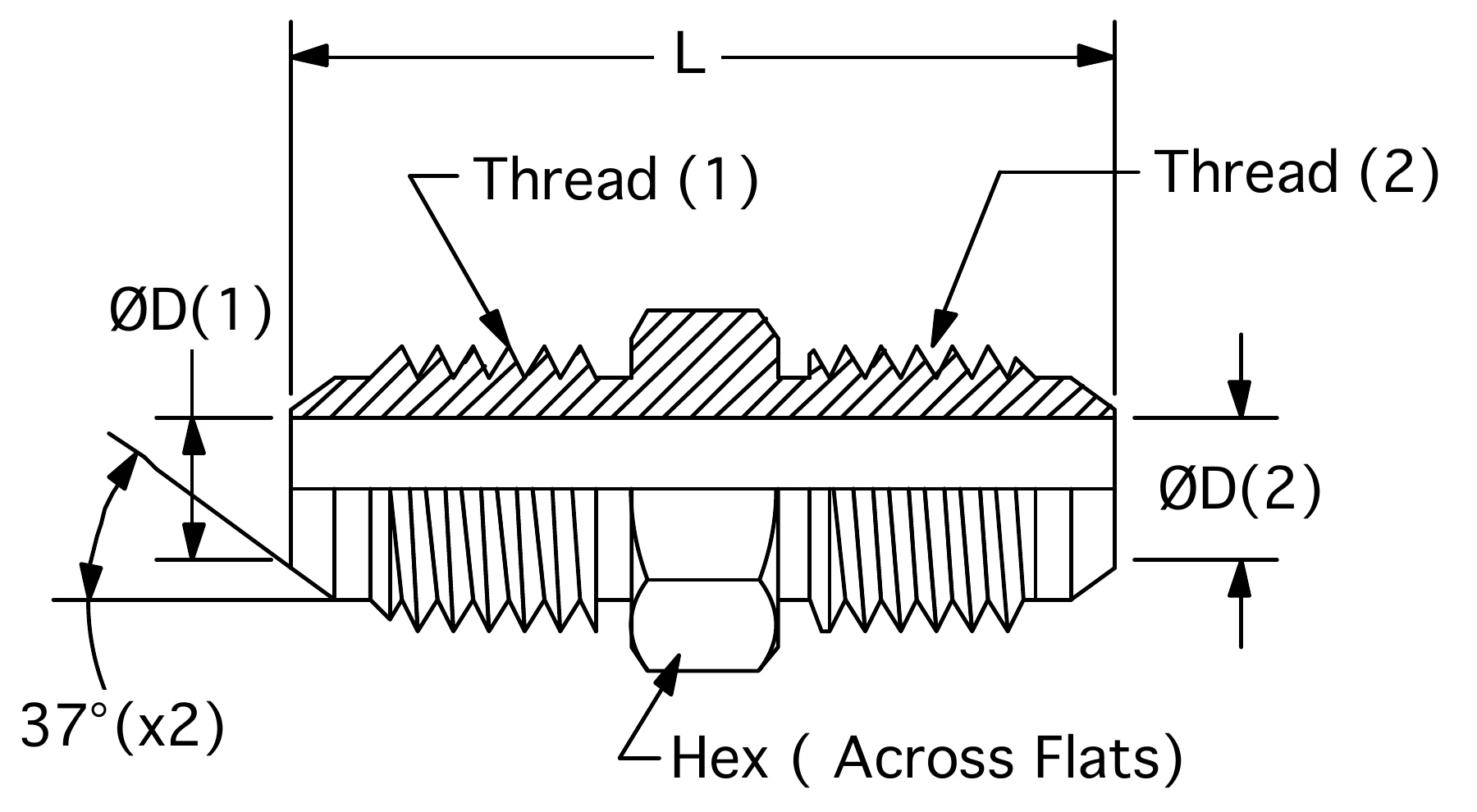

Drawing dimensions
| L | 2.16 |
|---|---|
| D(1) | 0.609 |
| D(2) | 0.609 |
| Hex | 1 1/8 |
| Thread (1) | 1 1/16-12 |
| Thread (2) | 1 1/16-12 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
