MCPHydraulic Adapters · Tee, Branch, Male, JIC-JIC-Pipe (NPTF)
2601-04-04-02

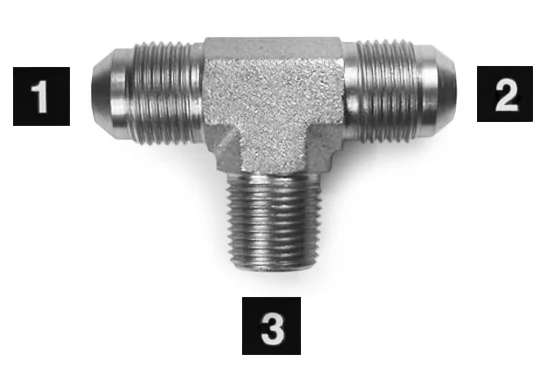

2601-04-04-02, Hydraulic Adapters, Tee, Branch, Male, JIC-JIC-Pipe (NPTF) 7/16-20 1/8-27
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.14 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 7/16-20 |
|---|---|
| Connection 2 thread | 7/16-20 |
| Connection 3 thread | 1/8-27 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.14 |
| 2+ | $3.64 |
| 3+ | $2.81 |
| 4+ | $2.39 |
| 5+ | $2.14 |
| 10+ | $1.62 |
| 25+ | $0.98 |
| 50+ | $0.80 |
| 75+ | $0.68 |
| 100+ | $0.58 |
| 250+ | $0.51 |
| 500+ | $0.38 |

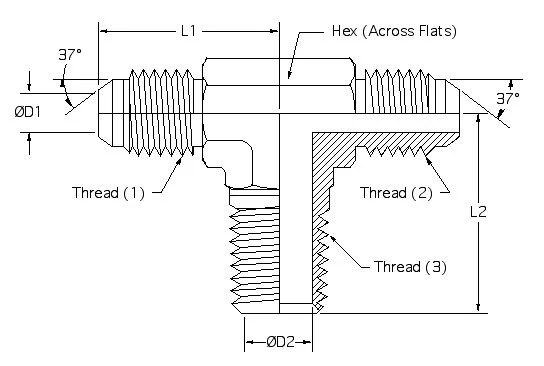

Drawing dimensions
| L1 | 0.89 |
|---|---|
| L2 | 0.78 |
| D1 | 0.172 |
| D2 | 0.188 |
| Hex | 7/16 |
| Thread(1) | 7/16-20 |
| Thread(2) | 7/16-20 |
| Thread(3) | 1/8-27 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
