MCPHydraulic Adapters · Tee, Branch, Male, JIC-JIC-Pipe (NPTF)
2601-08-08-08
2601-08-08-08, Hydraulic Adapters, Tee, Branch, Male, JIC-JIC-Pipe (NPTF) 3/4-16 1/2-14
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$7.21 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 3/4-16 |
|---|---|
| Connection 2 thread | 3/4-16 |
| Connection 3 thread | 1/2-14 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $7.21 |
| 2+ | $4.71 |
| 3+ | $3.87 |
| 4+ | $3.46 |
| 5+ | $3.18 |
| 10+ | $2.02 |
| 25+ | $1.57 |
| 50+ | $1.14 |
| 75+ | $1.01 |
| 100+ | $1.00 |

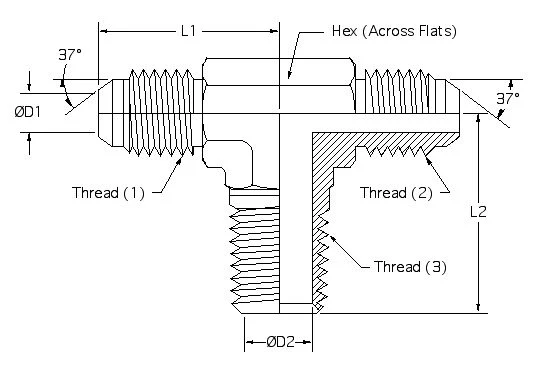

Drawing dimensions
| L1 | 1.33 |
|---|---|
| L2 | 1.47 |
| D1 | 0.391 |
| D2 | 0.531 |
| Hex | 7/8 |
| Thread(1) | 3/4-16 |
| Thread(2) | 3/4-16 |
| Thread(3) | 1/2-14 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
