MCPHydraulic Adapters · Union, Male, Bulkhead, JIC
2700LN-04-04
2700LN-04-04, Hydraulic Adapters, Union, Male, Bulkhead, JIC 7/16-20 7/16-20
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.95 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 7/16-20 |
|---|---|
| Connection 2 thread | 7/16-20 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.95 |
| 2+ | $3.45 |
| 3+ | $2.61 |
| 4+ | $2.20 |
| 5+ | $1.95 |
| 10+ | $1.44 |
| 25+ | $0.86 |
| 50+ | $0.69 |
| 75+ | $0.57 |
| 100+ | $0.50 |
| 250+ | $0.43 |
| 500+ | $0.33 |

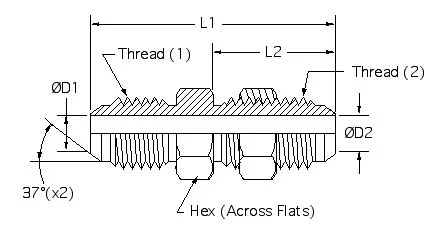

Drawing dimensions
| L1 | 2.07 |
|---|---|
| L2 | 1.20 |
| D1 | 0.17 |
| D2 | 0.17 |
| Hex | 0.69 |
| Thread(1) | 7/16-20 |
| Thread(2) | 7/16-20 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
