MCPHydraulic Adapters · Union, Male, Bulkhead, JIC
2700LN-05-05

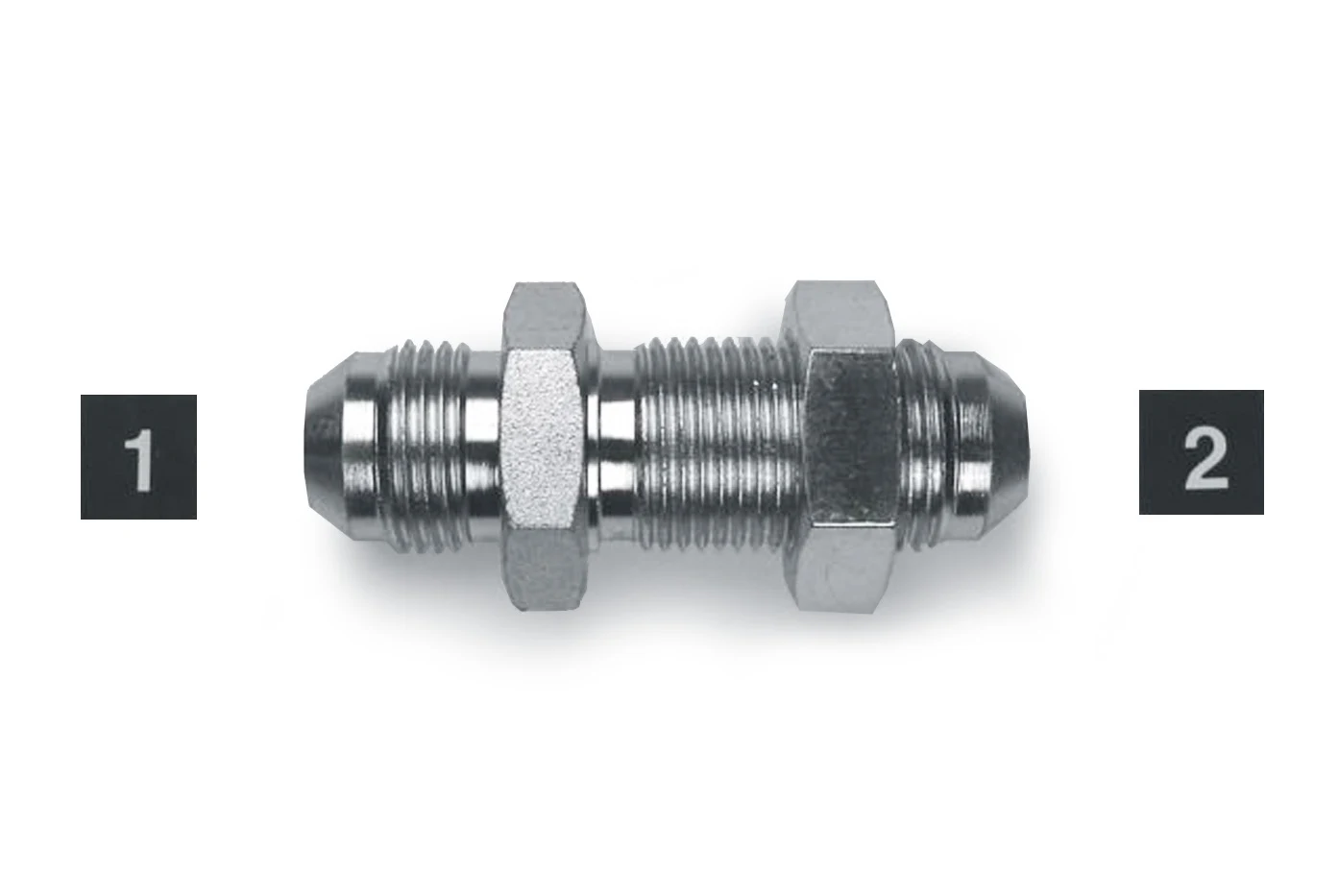

2700LN-05-05, Hydraulic Adapters, Union, Male, Bulkhead, JIC 1/2-20 1/2-20
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.51 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 1/2-20 |
|---|---|
| Connection 2 thread | 1/2-20 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.51 |
| 2+ | $4.01 |
| 3+ | $3.17 |
| 4+ | $2.76 |
| 5+ | $2.51 |
| 10+ | $1.54 |
| 25+ | $1.14 |
| 50+ | $0.91 |
| 75+ | $0.77 |
| 100+ | $0.70 |

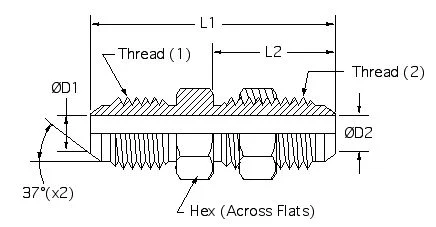

Drawing dimensions
| L1 | 2.07 |
|---|---|
| L2 | 1.20 |
| D1 | 0.23 |
| D2 | 0.23 |
| Hex | 0.75 |
| Thread(1) | 1/2-20 |
| Thread(2) | 1/2-20 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
