MCPClevis and Yoke Ends · Male
2811

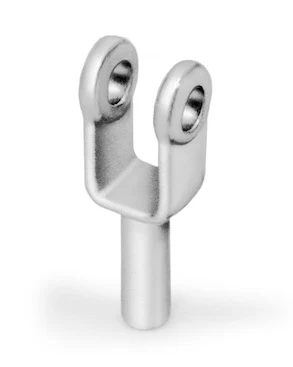

2811, Clevis and Yoke Ends, Male Blank Stem 0.250 Pin Holes Bare Metal Forged Construction
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$10.94 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | None |
|---|---|
| Finish / plating | None |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $10.94 |
| 2+ | $8.34 |
| 3+ | $5.73 |
| 4+ | $5.31 |
| 5+ | $5.06 |
| 10+ | $4.16 |
| 25+ | $2.97 |
| 50+ | $2.62 |
| 75+ | $2.00 |
| 100+ | $1.98 |
| 250+ | $1.75 |
| 500+ | $1.59 |

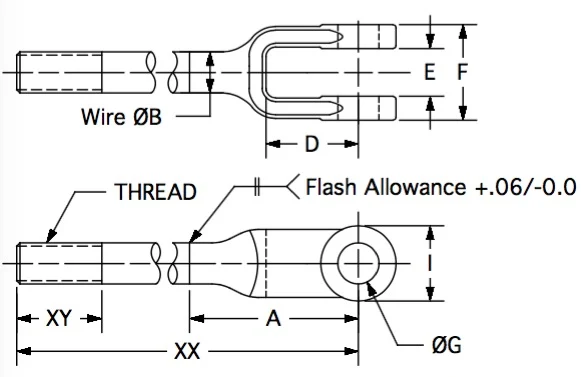

Drawing dimensions
| Threads | None |
|---|---|
| XY | Min Full |
| XX | 1.750 |
| A | NA |
| B | 0.250 |
| D | 0.625 |
| E | 0.281 |
| F | 0.625 |
| G | 0.250 |
| I | 0.500 |
| Plating | None |
Lettered dimensions refer to the drawing for this part.
