MCPClevis and Yoke Ends · Male
2812
2812, Clevis and Yoke Ends, Male Blank Stem 0.313 Pin Holes Bare Metal Forged Construction
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$13.88 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | None |
|---|---|
| Finish / plating | None |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $13.88 |
| 2+ | $8.57 |
| 3+ | $7.74 |
| 4+ | $6.73 |
| 5+ | $6.48 |
| 10+ | $5.24 |
| 25+ | $3.97 |
| 50+ | $2.99 |
| 100+ | $2.64 |
| 250+ | $2.39 |
| 500+ | $2.08 |
| 1,000+ | $1.79 |

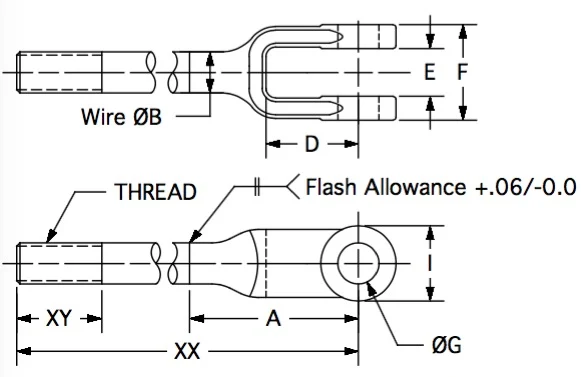

Drawing dimensions
| Threads | None |
|---|---|
| XY | na |
| XX | 2.000 |
| A | 2.000 |
| B | 0.313 |
| D | 0.750 |
| E | 0.344 |
| F | 0.750 |
| G | 0.313 |
| I | 0.594 |
| Plating | None |
Lettered dimensions refer to the drawing for this part.
