MCPClevis and Yoke Ends · Male Blank Forging
2811 Blank
2811 Blank, Clevis and Yoke Ends, Male Blank Forging 1/4 nominal size Coined Eyes Bare Metal Forged Construction
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$13.88 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Nominal size | 1/4 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $13.88 |
| 5+ | $6.57 |
| 10+ | $4.71 |
| 25+ | $4.04 |
| 50+ | $3.03 |
| 100+ | $2.68 |
| 250+ | $2.43 |
| 500+ | $2.12 |
| 1,000+ | $1.82 |

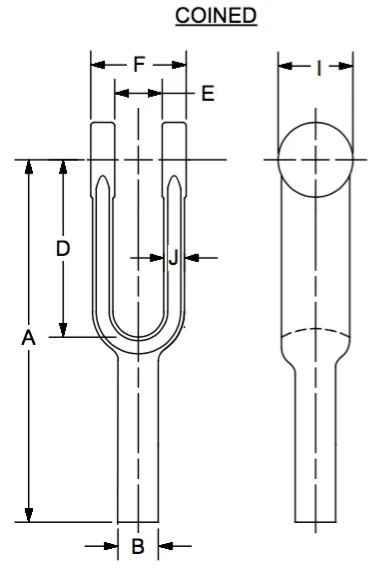

Drawing dimensions
| Nominal | 1/4 |
|---|---|
| A | 1.750 |
| B | .250 |
| D | .625 |
| E | .281 |
| F | .625 |
| I | .500 |
| J | .141 |
Lettered dimensions refer to the drawing for this part.
