MCPClevis and Yoke Ends · Male Blank Forging
2812 Blank

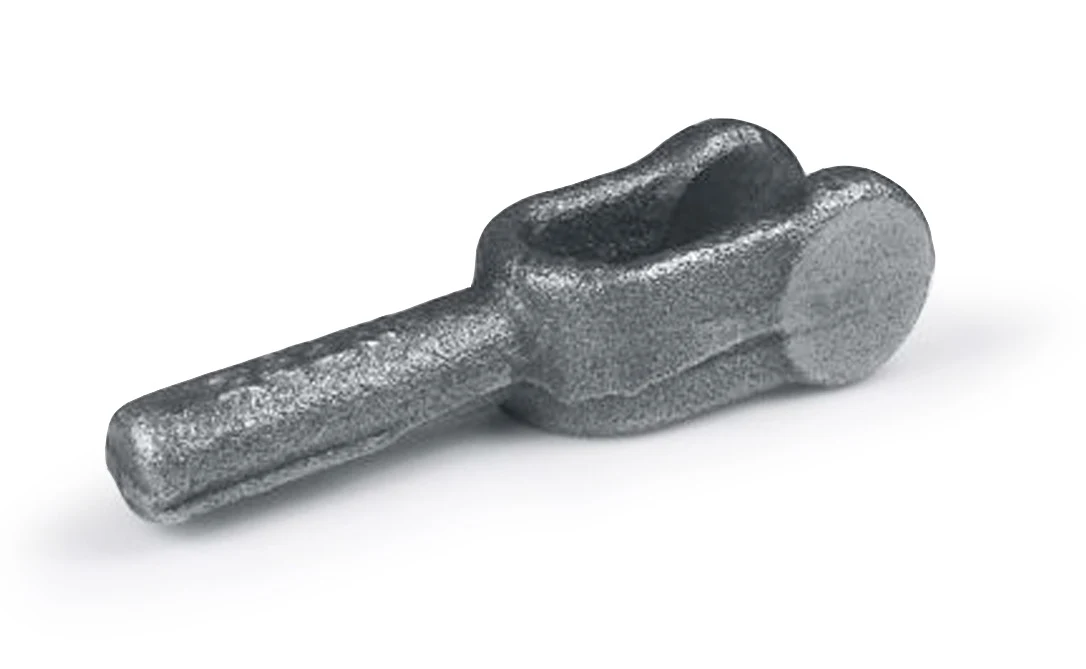

2812 Blank, Clevis and Yoke Ends, Male Blank Forging 5/16 nominal size Coined Eyes Bare Metal Forged Construction
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$10.80 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Nominal size | 5/16 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $10.80 |
| 2+ | $8.20 |
| 3+ | $5.63 |
| 4+ | $5.21 |
| 5+ | $4.96 |
| 10+ | $4.08 |
| 25+ | $2.91 |
| 50+ | $2.56 |
| 100+ | $1.93 |
| 250+ | $1.71 |

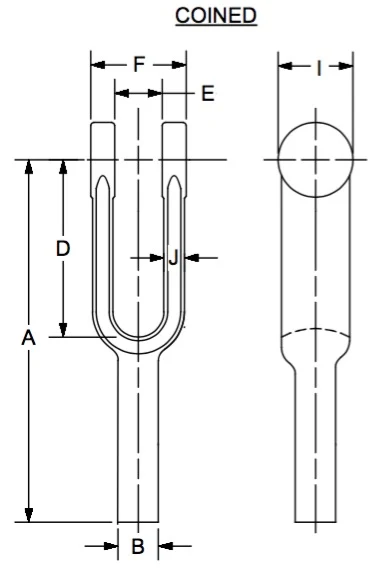

Drawing dimensions
| Nominal | 5/16 |
|---|---|
| A | 2.000 |
| B | .313 |
| D | .750 |
| E | .344 |
| F | .750 |
| I | .594 |
| J | .172 |
Lettered dimensions refer to the drawing for this part.
