MCPEye Rod Ends · Male
2823

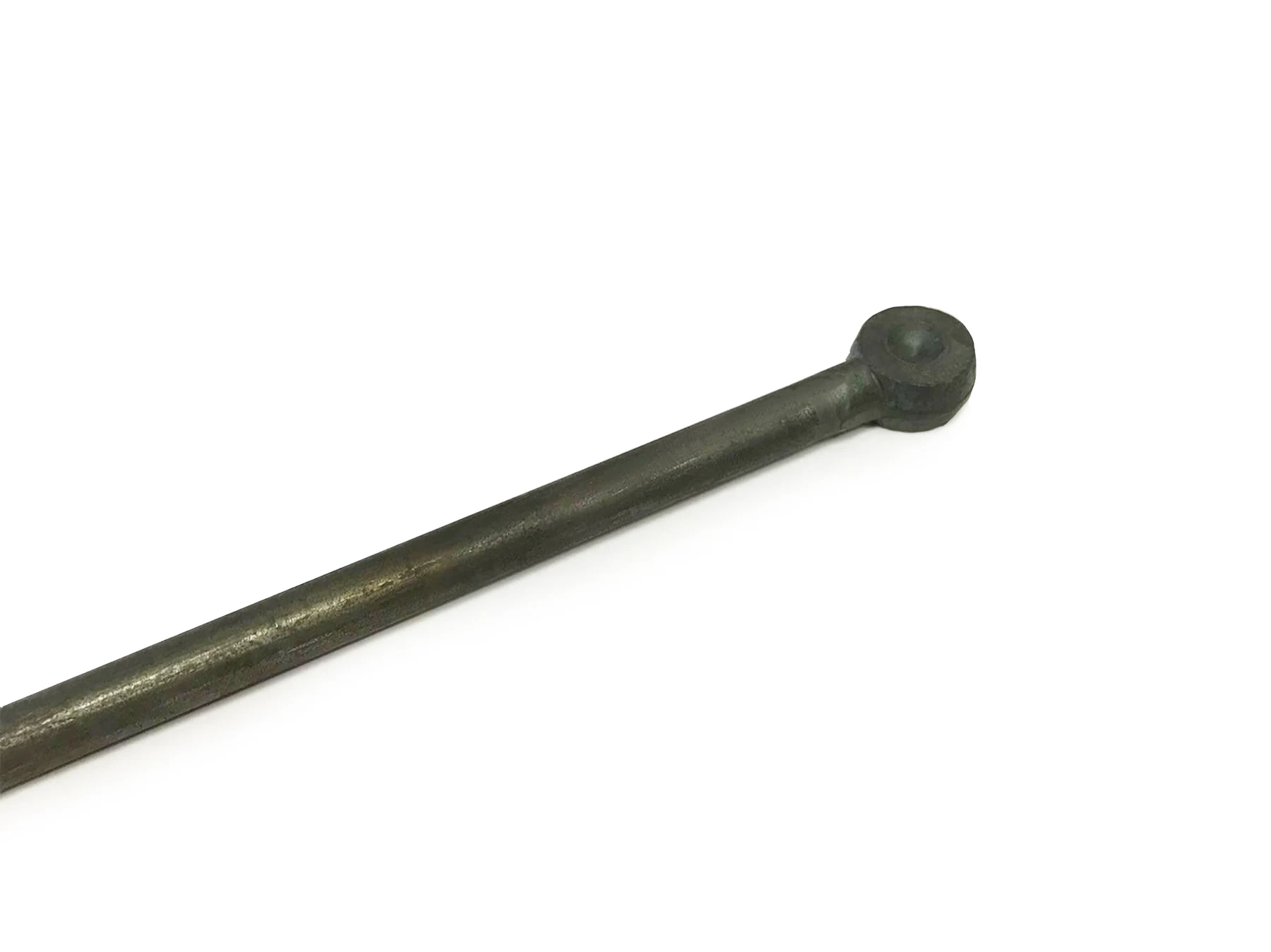

2823, Eye Rod Ends, Male 3/8 dia blank stem 0.375 Eye Forged Housing Construction
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$51.14 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 3/8 dia blank stem |
|---|---|
| Finish / plating | Plain |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $51.14 |
| 2+ | $44.52 |
| 3+ | $43.69 |
| 4+ | $33.39 |
| 5+ | $33.14 |
| 10+ | $29.34 |
| 25+ | $26.57 |
| 50+ | $23.18 |
| 100+ | $19.83 |
| 250+ | $19.45 |
| 500+ | $19.44 |
| 1,000+ | $19.44 |
| 2,500+ | $19.44 |
Drawing dimensions
| Threads | 3/8 dia blank stem |
|---|---|
| Plating | Plain |
| A | 14.00 |
| B | 0.375 |
| C | 0.375 |
| D | 0.688 |
| E | 0.438 |
Lettered dimensions refer to the drawing for this part.
Product information
Construction: This item is considered a 'raw blank forging'. We have forged the item, and have removed the forging scale, but have not machined holes or threads. It is suitable for welding and/or machining (drilling, threading, bending, etc).
Specials: Special housing sizes and configurations are available in volume. Different rod diameters can be welded or forged to the parent forging to achieve any length. If the housing dimensions D, E and G suit your application, the XX and XY dimensions can be any length up to 12'. The stem can be formed and machined to any configuration.
