MCPEye Rod Ends · Male
2827

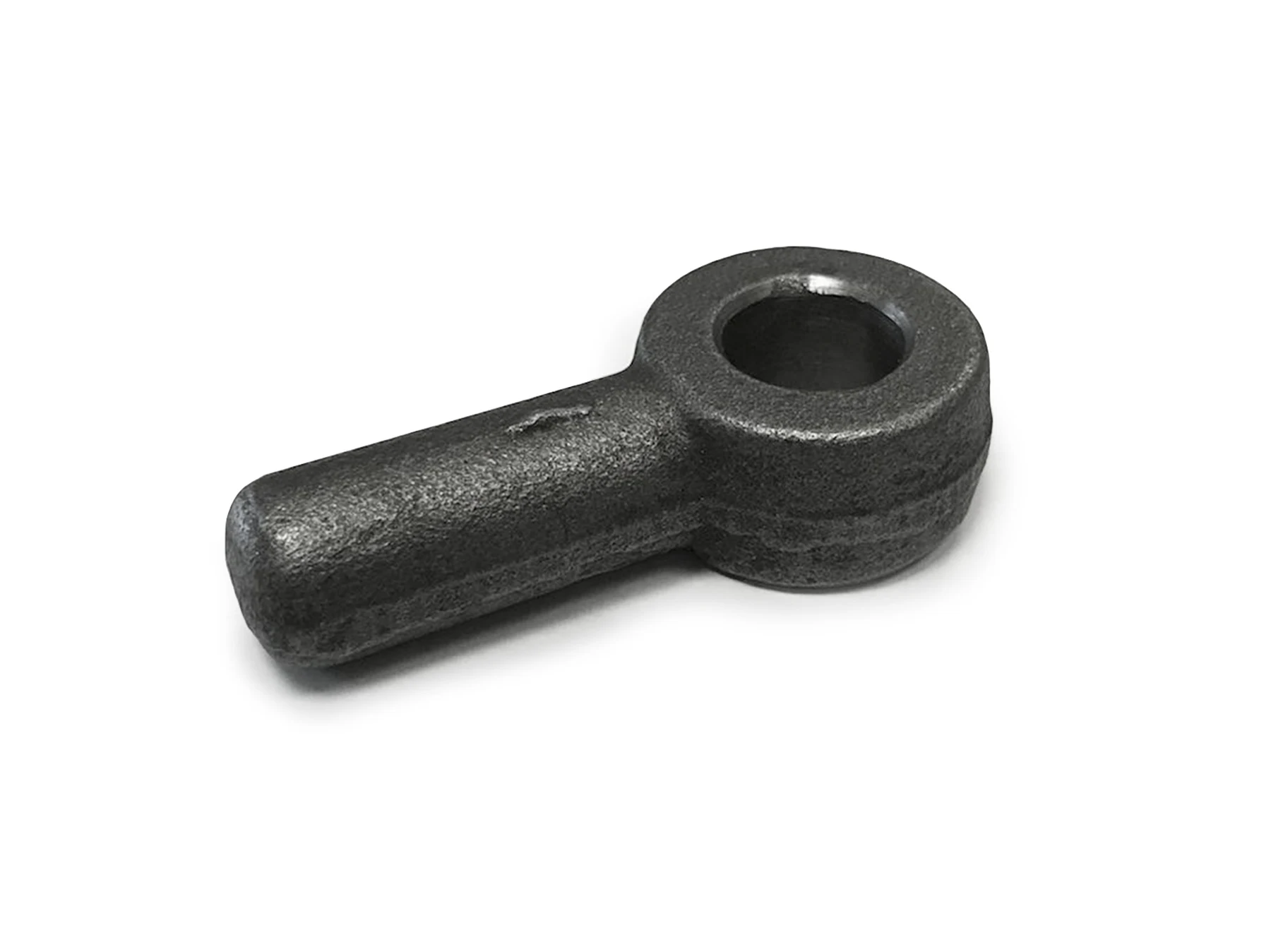

2827, Eye Rod Ends, Male 5/8 dia blank stem blank eye (not yet drilled) Forged Housing Construction
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$19.70 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 5/8 dia blank stem |
|---|---|
| Finish / plating | None |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $19.70 |
| 2+ | $12.72 |
| 3+ | $10.88 |
| 4+ | $10.47 |
| 5+ | $8.98 |
| 10+ | $7.48 |
| 25+ | $5.07 |
| 50+ | $4.47 |
| 100+ | $4.42 |

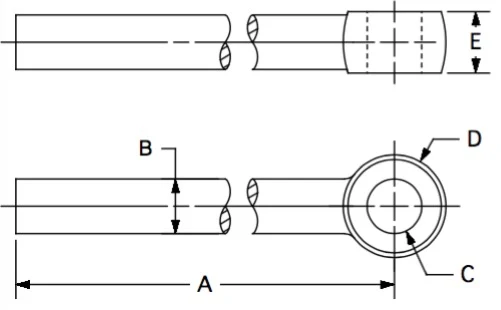

Drawing dimensions
| Threads | 5/8 dia blank stem |
|---|---|
| Plating | None |
| A | 2.00 |
| B | 0.625 |
| C | 0.625 |
| D | 1.188 |
| E | 0.6875 |
Lettered dimensions refer to the drawing for this part.
Product information
Construction: This item is considered a 'raw blank forging'. We have forged the item, and have removed the forging scale, but have not machined holes or threads. It is suitable for welding and/or machining (drilling, threading, bending, etc).
Specials: Special housing sizes and configurations are available in volume. Different rod diameters can be welded or forged to the parent forging to achieve any length. If the housing dimensions D, E and G suit your application, the XX and XY dimensions can be any length up to 12'. The stem can be formed and machined to any configuration.
