MCPHydraulic Adapters · Union, Barb-Male, Barb-ORB
4604-06-04
4604-06-04, Hydraulic Adapters, Union, Barb-Male, Barb-ORB 7/16-20 Beaded 3/8
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.24 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 7/16-20 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.24 |
| 2+ | $3.74 |
| 3+ | $2.91 |
| 4+ | $2.49 |
| 5+ | $2.24 |
| 10+ | $1.72 |
| 25+ | $0.96 |
| 50+ | $0.76 |
| 75+ | $0.65 |
| 100+ | $0.63 |

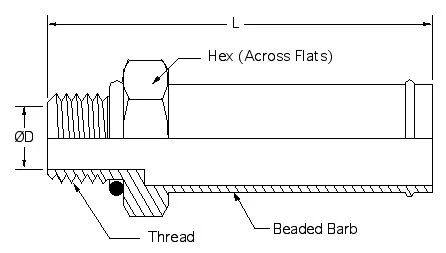

Drawing dimensions
| L | 2.14 |
|---|---|
| D | 0.172 |
| Hex | 9/16 |
| Thread | 7/16-20 |
| Beaded Barb | 3/8 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
