MCPHydraulic Adapters · Union, Barb-Male, Barb-ORB
4604-08-08
4604-08-08, Hydraulic Adapters, Union, Barb-Male, Barb-ORB 3/4-16 Beaded 1/2
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.10 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 3/4-16 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.10 |
| 2+ | $3.60 |
| 3+ | $2.76 |
| 4+ | $2.35 |
| 5+ | $2.10 |
| 10+ | $1.58 |
| 25+ | $0.96 |
| 50+ | $0.78 |
| 75+ | $0.65 |
| 100+ | $0.57 |

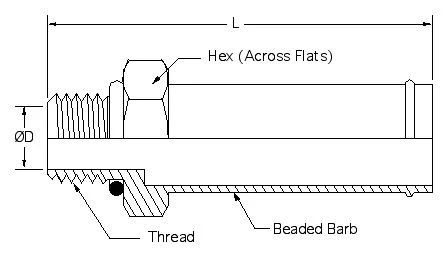

Drawing dimensions
| L | 2.28 |
|---|---|
| D | 0.391 |
| Hex | 7/8 |
| Thread | 3/4-16 |
| Beaded Barb | 1/2 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
