MCPHydraulic Adapters · Tee, Run, Swivel, M-F-M, JIC
6602-04-04-04

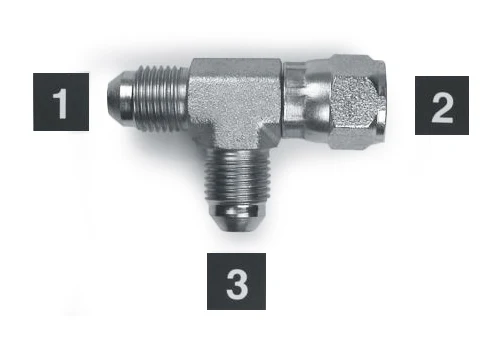

6602-04-04-04, Hydraulic Adapters, Tee, Run, Swivel, M-F-M, JIC 7/16-20 7/16-20 7/16-20
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.79 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 7/16-20 |
|---|---|
| Connection 2 thread | 7/16-20 |
| Connection 3 thread | 7/16-20 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.79 |
| 2+ | $3.29 |
| 3+ | $2.46 |
| 4+ | $2.04 |
| 5+ | $1.79 |
| 10+ | $1.29 |
| 25+ | $0.74 |
| 50+ | $0.59 |
| 75+ | $0.56 |
| 100+ | $0.47 |
| 250+ | $0.35 |
| 500+ | $0.27 |

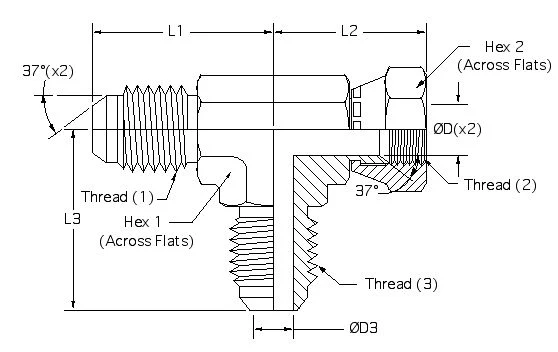

Drawing dimensions
| L1 | 0.89 |
|---|---|
| L2 | 1.00 |
| L3 | 0.89 |
| D | 0.172 |
| D3 | 0.172 |
| Hex 1 | 7/16 |
| Hex 2 | 9/16 |
| Thread 1 | 7/16-20 |
| Thread 2 | 7/16-20 |
| Thread 3 | 7/16-20 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
