MCPHydraulic Adapters · Tee, Run, Swivel, M-F-M, JIC
6602-08-08-08
6602-08-08-08, Hydraulic Adapters, Tee, Run, Swivel, M-F-M, JIC 3/4-16 3/4-16 3/4-16
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.89 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Connection 1 thread | 3/4-16 |
|---|---|
| Connection 2 thread | 3/4-16 |
| Connection 3 thread | 3/4-16 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.89 |
| 2+ | $3.39 |
| 3+ | $2.56 |
| 4+ | $2.14 |
| 5+ | $1.89 |
| 10+ | $1.39 |
| 25+ | $0.81 |
| 50+ | $0.65 |
| 75+ | $0.55 |
| 100+ | $0.53 |

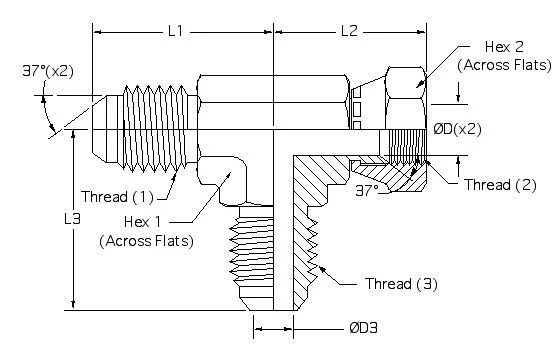

Drawing dimensions
| L1 | 1.25 |
|---|---|
| L2 | 1.38 |
| L3 | 1.25 |
| D | 0.391 |
| D3 | 0.391 |
| Hex 1 | 3/4 |
| Hex 2 | 7/8 |
| Thread 1 | 3/4-16 |
| Thread 2 | 3/4-16 |
| Thread 3 | 3/4-16 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: zinc plated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
