BC-6-ZCHF, Clevis Spring Pins, Clips and Cotters, Clips for 6 mm Clevis Pins Spring Steel Bayonet Style Zinc Clear Hex Free (ROHS)
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.50 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Nominal size | 6 |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.50 |
| 2+ | $4.00 |
| 3+ | $3.17 |
| 4+ | $2.75 |
| 5+ | $2.50 |
| 10+ | $1.53 |
| 25+ | $1.13 |
| 50+ | $0.90 |
| 100+ | $0.69 |
| 250+ | $0.51 |
| 500+ | $0.45 |
| 1,000+ | $0.42 |
| 2,000+ | $0.35 |

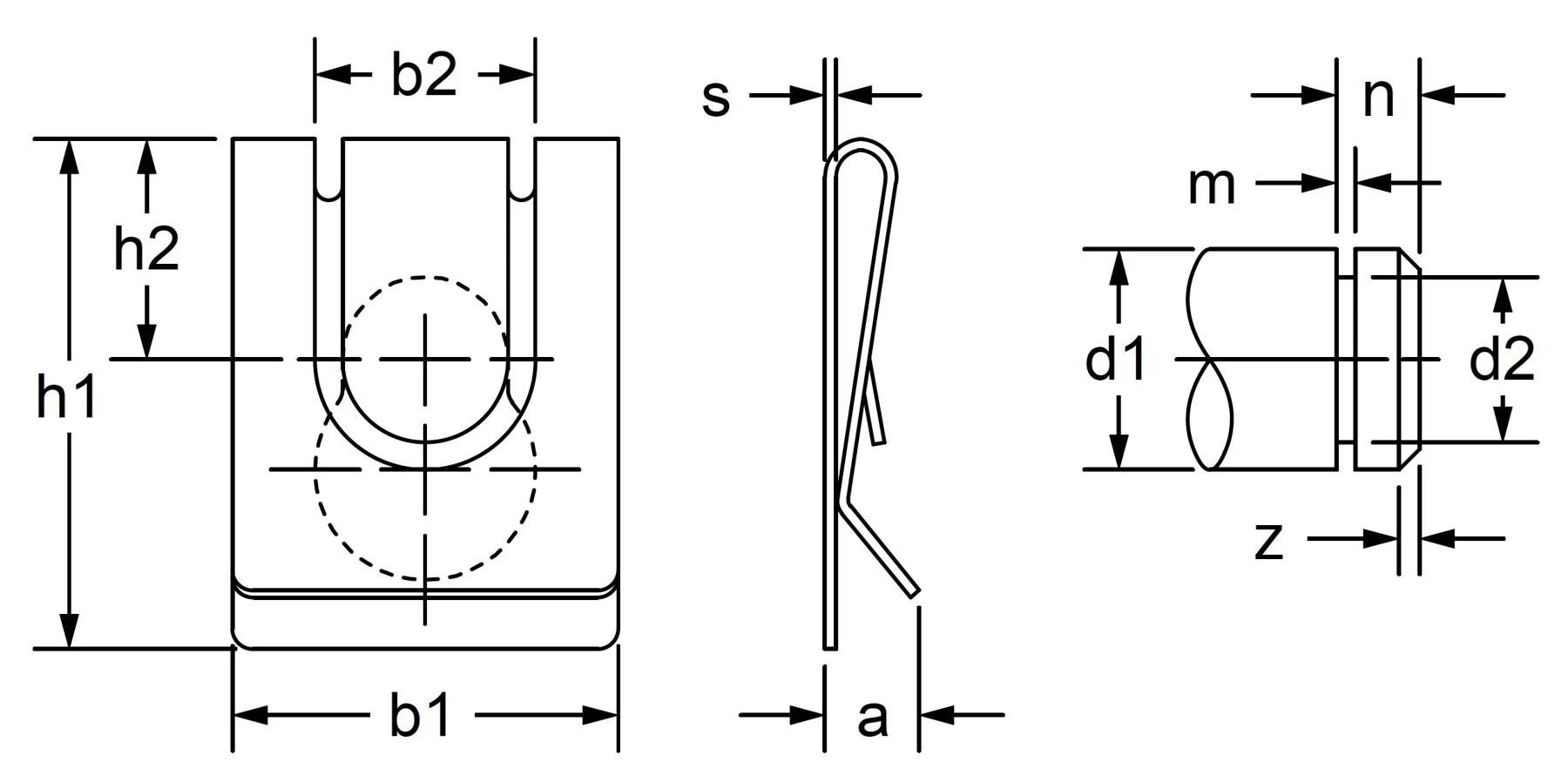

Drawing dimensions
| Nominal Size | 6 |
|---|---|
| b1 | 11.0 |
| b2 | 6.1 |
| h1 | 13.6 |
| h2 | 5.5 |
| a | 2.8 |
| s | 0.40 |
| d1 | 6 |
| d2 | 5.0 |
| m | 0.74 |
| n | 3.0 |
| z | 0.75 |
Lettered dimensions refer to the drawing for this part.
Product information
Application: Use safety clips and bayonet clips on grooved rods or grooved clevis pins instead of the traditional cotter pin.
Construction: Spring steel, plated zinc clear.
