BCE-40-HE

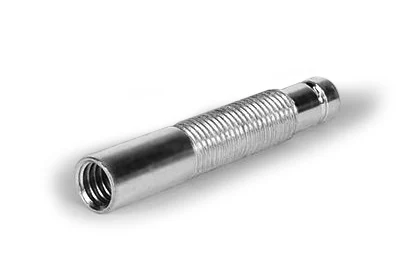

BCE-40-HE, Cable Assemblers Subcomponents, Bulkhead Conduit Fitting 1/4-28 Nominal Size High Efficiency
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$17.11 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| External thread | 5/8-18 |
|---|---|
| Internal thread | 7/16-24 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $17.11 |
| 2+ | $10.92 |
| 3+ | $9.27 |
| 4+ | $8.85 |
| 5+ | $7.57 |
| 10+ | $6.25 |
| 20+ | $5.49 |
| 40+ | $4.13 |
| 80+ | $3.66 |
| 100+ | $3.65 |
| 200+ | $3.31 |
| 500+ | $2.48 |
| 700+ | $2.47 |
| 900+ | $2.47 |
| 1,700+ | $2.42 |

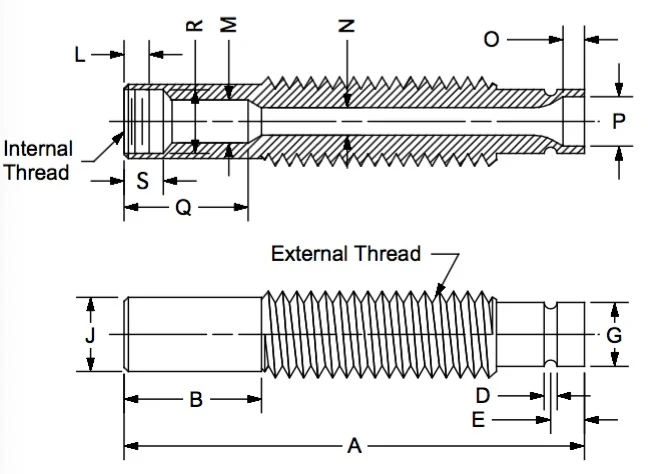

Drawing dimensions
| External Thread | 5/8-18 |
|---|---|
| Internal Thread | 7/16-24 |
| A | 3.25 |
| B | 1.25 |
| D | 0.075 |
| E | 0.28 |
| G | 0.50 |
| J | 0.623 |
| L | 0.43 |
| M | 0.305 |
| N | 0.21 |
| O | 0.195 |
| P | 0.433 |
| Q | 1.12 |
| R | 0.421 |
| S | 0.50 |
Lettered dimensions refer to the drawing for this part.
