MCPCable Assemblers Subcomponents · Bulkhead Conduit Fitting
BCE-M10
BCE-M10, Cable Assemblers Subcomponents, Bulkhead Conduit Fitting M10 Nominal Size
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$9.93 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| External thread | M22 x 1.5 |
|---|---|
| Internal thread | 11/16-16 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $9.93 |
| 2+ | $7.35 |
| 3+ | $6.51 |
| 4+ | $4.63 |
| 5+ | $4.38 |
| 10+ | $3.55 |
| 25+ | $2.51 |
| 50+ | $2.21 |
| 100+ | $1.67 |
| 250+ | $1.47 |
| 500+ | $1.32 |
| 1,000+ | $1.16 |
| 2,500+ | $0.99 |
| 4,000+ | $0.97 |

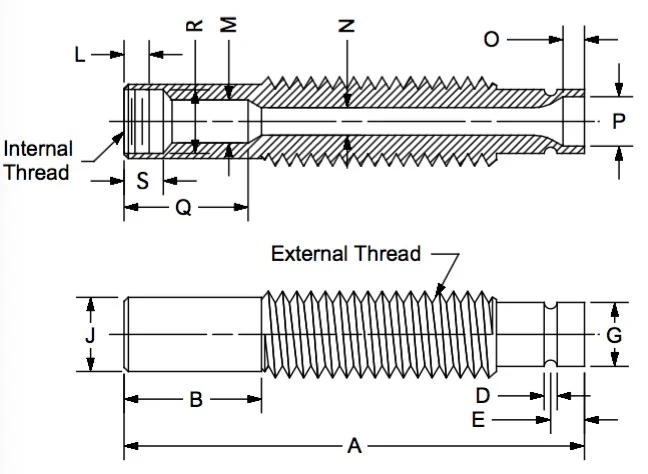

Drawing dimensions
| External Thread | M22 x 1.5 |
|---|---|
| Internal Thread | 11/16-16 |
| A | 123.20 |
| B | 41.00 |
| D | 1.91 |
| E | 7.11 |
| G | 16.69 |
| J | 23.40 |
| L | 14.20 |
| M | 12.29 |
| N | 6.60 |
| O | 4.93 |
| P | 14.76 |
| Q | 28.45 |
| R | 16.26 |
| S | 15.75 |
Lettered dimensions refer to the drawing for this part.
