MCPBushings, Bronze and Polyurethane · Flange
BFL-12-0.338

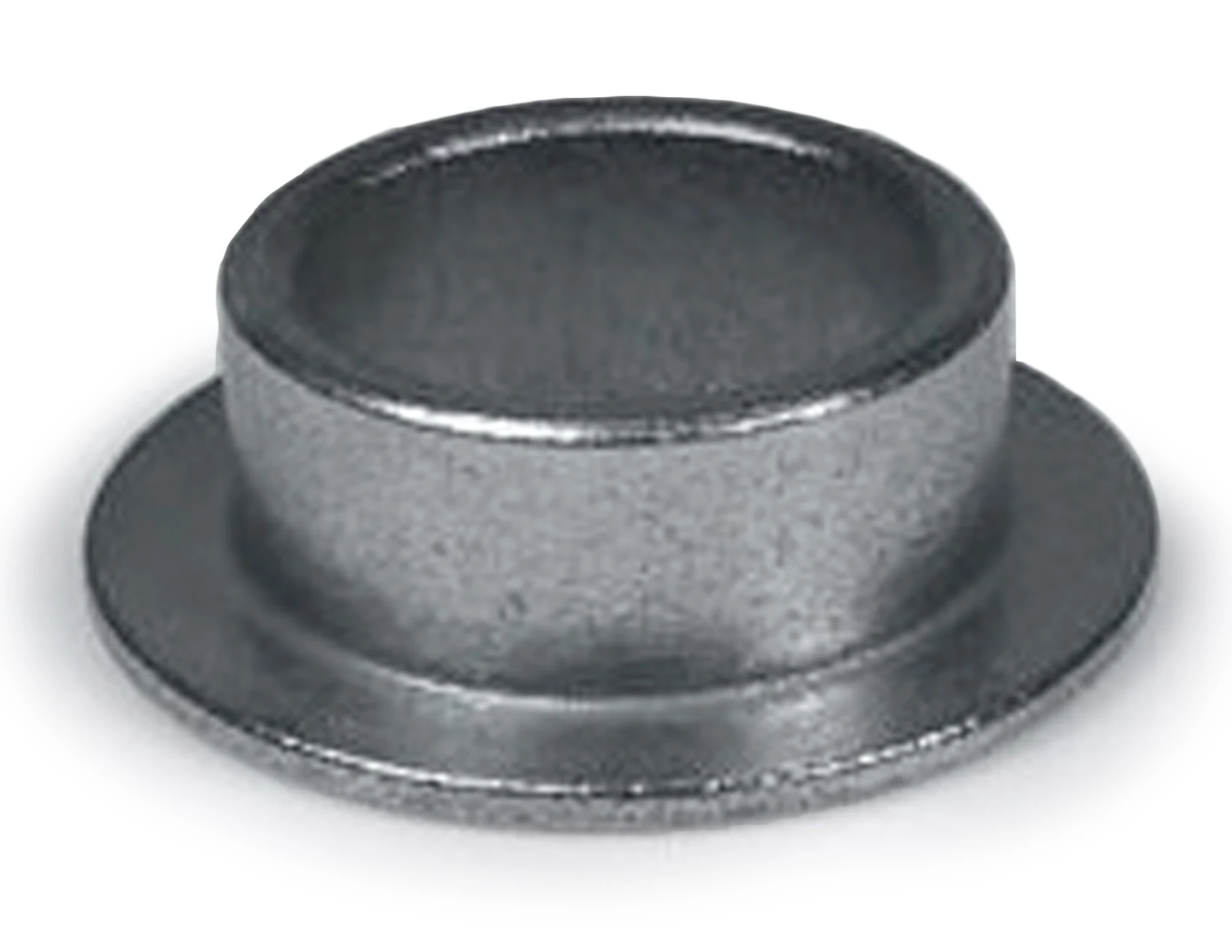

BFL-12-0.338, Bushings, Bronze and Polyurethane, Flange 3/4 Bore Fits Tube ID of 0.937 Bronze
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$10.40 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Material | Bronze |
|---|---|
| Fits tube inside diameter | 0.937 |
| Style | Flanged |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $10.40 |
| 2+ | $7.81 |
| 3+ | $5.36 |
| 4+ | $4.94 |
| 5+ | $4.69 |
| 10+ | $3.83 |
| 25+ | $2.72 |
| 50+ | $2.40 |
| 100+ | $1.81 |
| 200+ | $1.61 |
| 500+ | $1.45 |
| 700+ | $1.27 |
Drawing dimensions
| Style | Flanged |
|---|---|
| Material | Bronze |
| C | 0.753 |
| D | 0.937 |
| L | 0.338 |
| M | 1.312 |
| P | 0.060 |
Lettered dimensions refer to the drawing for this part.
Product information
Dimensioning: Nominal dimensions are shown. Actual dimensions will vary based on function. For example, an item showing an ID dimension of 0.750, will be 0.752. In the same way, OD dimensions that are press fit into a housing will be appropriately oversized as well.
Application: Typical applications include foot and hand actuated linkages such as foot pedals, levers, shifters and bellcranks.
