MCPBall Studs · Threaded
BSM16-C
BSM16-C, Ball Studs, Threaded M16 x 2.00 RH 28 mm Stem Length
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$6.33 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | M16 x 2 RH |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $6.33 |
| 2+ | $3.83 |
| 3+ | $2.99 |
| 4+ | $2.58 |
| 5+ | $2.33 |
| 10+ | $1.80 |
| 25+ | $1.02 |
| 50+ | $0.81 |
| 100+ | $0.67 |
| 250+ | $0.46 |
| 500+ | $0.40 |
| 1,000+ | $0.39 |

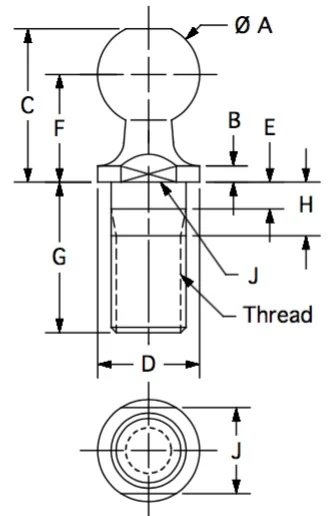

Drawing dimensions
| Threads | M16 x 2.00 RH |
|---|---|
| A | 19 |
| B | 3 |
| C | 28.5 |
| D | 19 |
| E | 5 |
| F | 20 |
| G | 28 |
| H | 10.8 |
| J | 16 |
Lettered dimensions refer to the drawing for this part.
Product information
Series: MCP offers ball studs for ball joint and gas spring applications.
Construction: zinc plated, low carbon steel, heat treated
