MCPBall Studs · Threaded
BSM8-C
BSM8-C, Ball Studs, Threaded M8 x 1.25 RH 16.5 mm Stem Length
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$8.60 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | M8 x 1.25 RH |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $8.60 |
| 2+ | $6.10 |
| 3+ | $5.21 |
| 4+ | $4.79 |
| 5+ | $3.46 |
| 10+ | $2.72 |
| 25+ | $1.88 |
| 50+ | $1.63 |
| 100+ | $1.22 |
| 300+ | $1.07 |
| 500+ | $1.00 |
| 1,000+ | $0.85 |

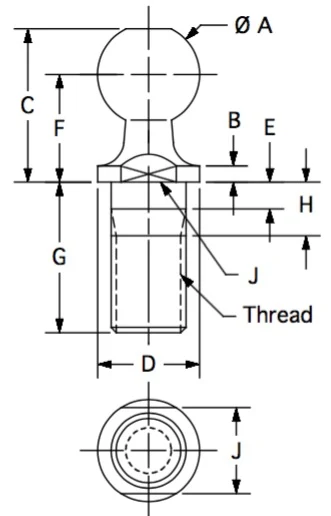

Drawing dimensions
| Threads | M8 x 1.25 RH |
|---|---|
| A | 13 |
| B | 2.4 |
| C | 18.5 |
| D | 13 |
| E | 1.5 |
| F | 13 |
| G | 16.5 |
| H | 5.3 |
| J | 11 |
Lettered dimensions refer to the drawing for this part.
Product information
Series: MCP offers ball studs for ball joint and gas spring applications.
Construction: zinc plated, low carbon steel, heat treated
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
More ball studs
Compare specifications and drawings to select the right part.
