CBT-40-3 (tube)
CBT-40-3 (tube), Cable Assemblers Subcomponents, Guide Tube 1/4-28 Nominal Size 3 inches Travel
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$12.21 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Travel | 3 in |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $12.21 |
| 2+ | $9.59 |
| 3+ | $6.60 |
| 4+ | $6.18 |
| 5+ | $5.45 |
| 10+ | $4.34 |
| 25+ | $3.26 |
| 50+ | $2.44 |
| 100+ | $2.15 |
| 250+ | $2.00 |
| 500+ | $1.69 |
| 1,000+ | $1.45 |
| 2,500+ | $1.42 |
| 5,000+ | $1.42 |

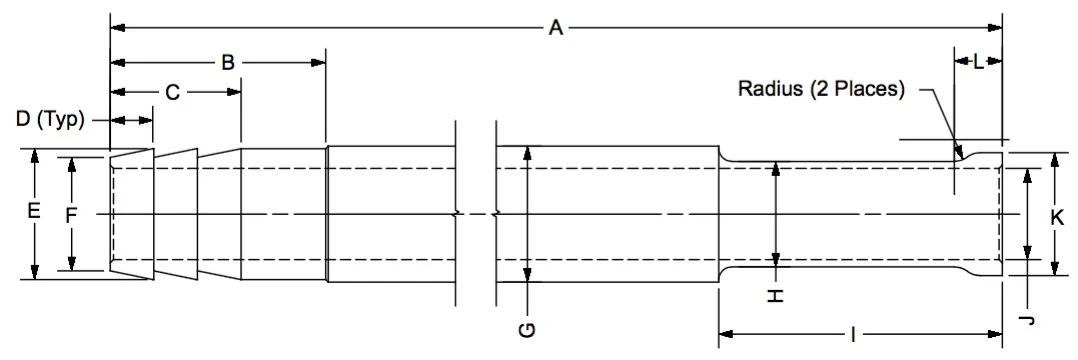

Drawing dimensions
| A | 3.870 |
|---|---|
| B | 0.500 |
| C | 0.300 |
| E | 0.370 |
| F | 0.340 |
| G | 0.375 |
| H | 0.325 |
| I | 0.700 |
| J | 0.273 |
| K | 0.380 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: Brass
Finish: Bright Chrome Plated
Description: Example CBT-30-1
CBT = Series
30 = Cable Size/Series
1 = Travel range
