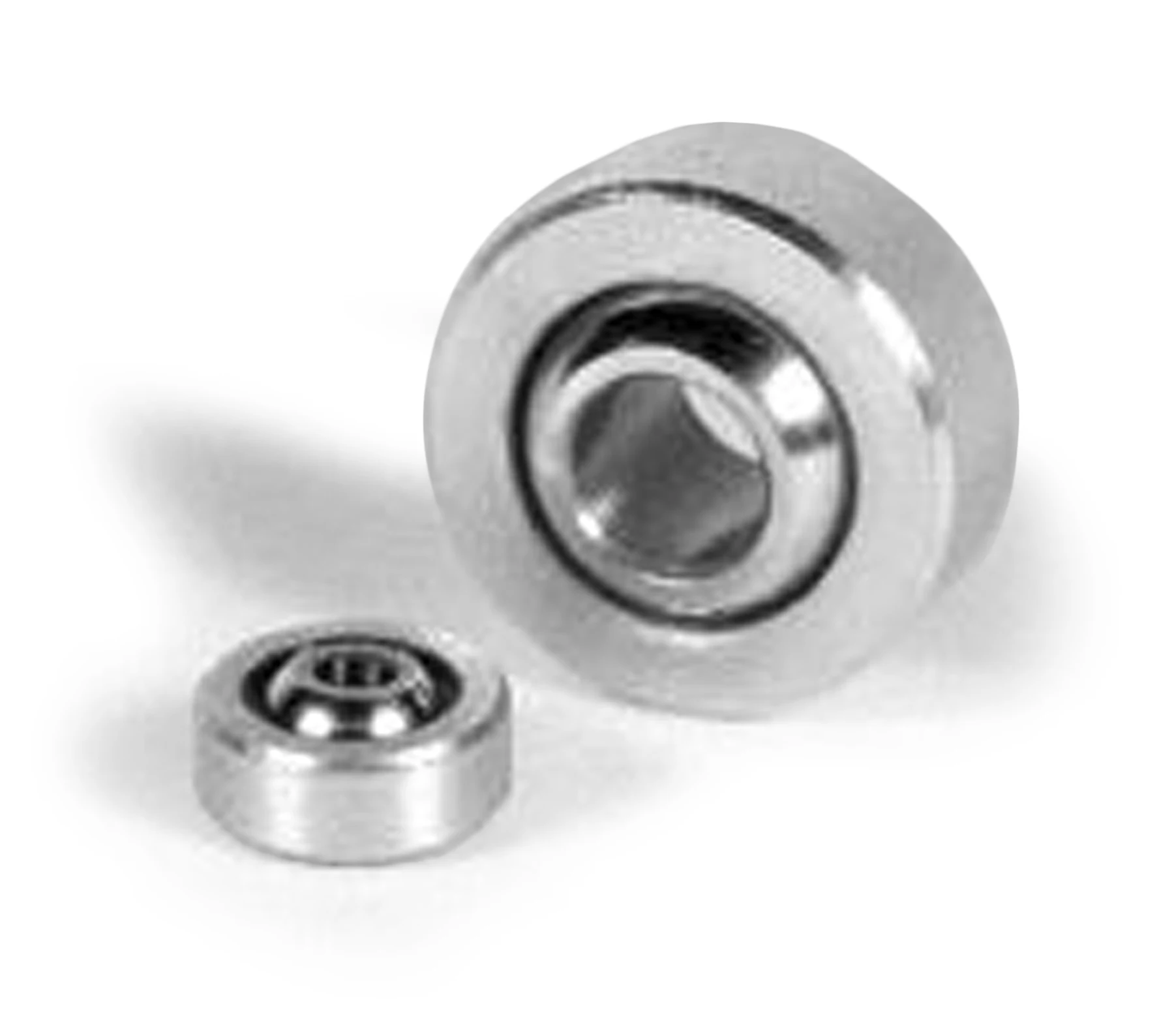

MCPBearings, Spherical Plain · 0.3125 inch dia Bore
COM-05
COM-05, Bearings, Spherical Plain, 0.3125 inch dia Bore 0.7500 inch outer diamater 0.375 inch width Plated Housing, Steel Race

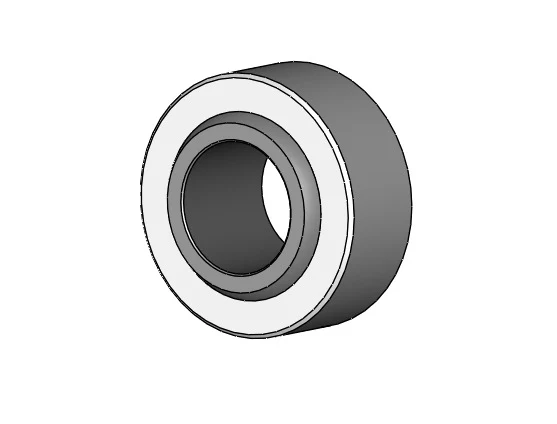

Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$58.20 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Outside diameter | 0.75 in |
|---|---|
| Width | 0.375 in |
| Housing construction | Plated |
| Race material | Steel |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $58.20 |
| 2+ | $50.95 |
| 3+ | $38.72 |
| 4+ | $38.30 |
| 5+ | $38.05 |
| 10+ | $33.75 |
| 25+ | $30.60 |
| 50+ | $26.70 |
| 100+ | $22.85 |
| 200+ | $22.45 |
| 300+ | $22.44 |
| 500+ | $22.43 |
| 700+ | $22.43 |

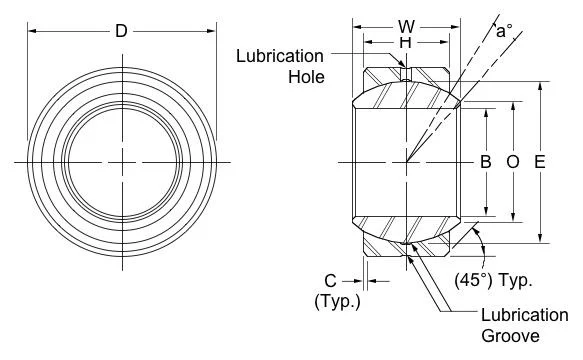

Drawing dimensions
| B | 0.3125 |
|---|---|
| C | 0.032 |
| D | 0.7500 |
| E | 0.562 |
| H | 0.281 |
| O | 0.419 |
| W | 0.375 |
| a° | 12.0° |
Lettered dimensions refer to the drawing for this part.
Product information
Material: plated steel
Bearing Race: steel
Common Names: common names for spherical plain bearings include 'COM Bearings' and 'Uniballs'
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
