MCPBearings, Spherical Plain · 0.3125 inch dia Bore
COMP-05
COMP-05, Bearings, Spherical Plain, 0.3125 inch dia Bore 0.7500 inch outer diamater 0.375 inch width Plated Housing, Nylon Race
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$16.21 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Outside diameter | 0.75 in |
|---|---|
| Width | 0.375 in |
| Housing construction | Plated |
| Race material | Nylon |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $16.21 |
| 2+ | $10.29 |
| 3+ | $8.70 |
| 4+ | $8.28 |
| 5+ | $8.03 |
| 10+ | $5.82 |
| 30+ | $3.88 |
| 50+ | $3.81 |
| 100+ | $3.38 |
| 150+ | $3.17 |
| 250+ | $3.06 |
| 400+ | $2.67 |

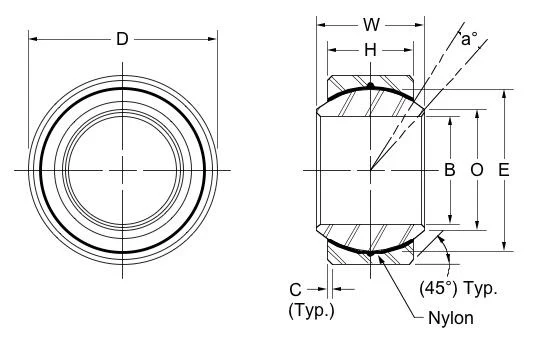

Drawing dimensions
| B | 0.3125 |
|---|---|
| C | 0.032 |
| D | 0.7500 |
| E | 0.562 |
| H | 0.281 |
| O | 0.419 |
| W | 0.375 |
| a° | 12.0° |
Lettered dimensions refer to the drawing for this part.
Product information
Material: plated steel
Bearing Race: nylon
Common Names: common names for spherical plain bearings include 'COM Bearings' and 'Uniballs'
