MCPEye Rod Ends · Male
CRE-8
CRE-8, Eye Rod Ends, Male 1/2-20 RH 0.500 Bore Chrome Plated 1018 Steel
Additional photos
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$20.91 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Thread | 1/2-20 RH |
|---|---|
| Bore diameter | 0.5 |
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $20.91 |
| 2+ | $16.86 |
| 3+ | $14.09 |
| 4+ | $12.12 |
| 5+ | $11.87 |
| 10+ | $10.40 |
| 20+ | $7.82 |
| 30+ | $6.97 |
| 60+ | $6.89 |
| 90+ | $6.47 |
| 120+ | $6.26 |
| 150+ | $5.48 |
| 300+ | $4.68 |

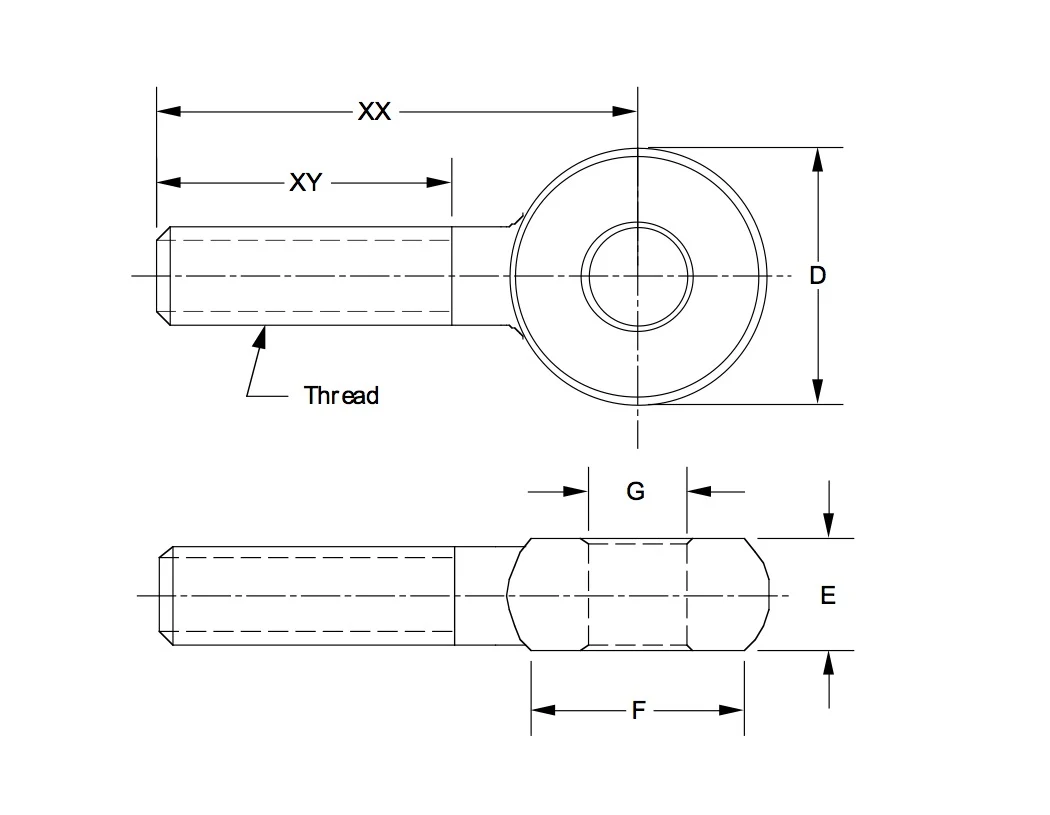

Drawing dimensions
| Threads | 1/2-20 RH |
|---|---|
| D | 1.312 |
| E | 0.625 |
| F | 1.250 |
| G | 0.500 |
| XX | 2.437 |
| XY | 1.500 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: low carbon steel
Finish: Chrome Plated
Feature: Solid Rod Eye
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
