CTS-30 (tube seal)
CTS-30 (tube seal), Cable Assemblers Subcomponents, Tube Seal 10-32 and M4 Nominal Size
Drawings, photos & CAD downloads
Public previews are available above. A free account is required to download original files.
$5.79 per piece at 1+ quantity
Choose quantity / request quoteConfirm lead time and availability when requesting a quote.
Specifications
| Nominal size | 30 Series (10-32 & M4 cables) |
|---|
Values without units follow the drawing.
Volume list pricing
USD per piece. Volume and dealer pricing are confirmed on quote.
| Quantity | Price per piece |
|---|---|
| 1+ | $5.79 |
| 2+ | $3.29 |
| 3+ | $2.46 |
| 4+ | $2.04 |
| 5+ | $1.79 |
| 10+ | $1.29 |
| 20+ | $0.79 |
| 30+ | $0.71 |
| 50+ | $0.59 |
| 100+ | $0.47 |
| 200+ | $0.36 |
| 400+ | $0.27 |
| 800+ | $0.24 |
| 1,200+ | $0.23 |
| 1,600+ | $0.23 |

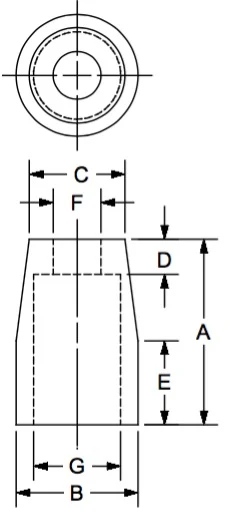

Drawing dimensions
| Nominal | 30 Series (10-32 & M4 cables) |
|---|---|
| A | 0.750 |
| B | 0.476 |
| C | 0.375 |
| D | 0.125 |
| E | 0.375 |
| F | 0.218 |
| G | 0.320 |
Lettered dimensions refer to the drawing for this part.
Product information
Material: rubber
Color: black
Typical Application: push-pull control cables.
